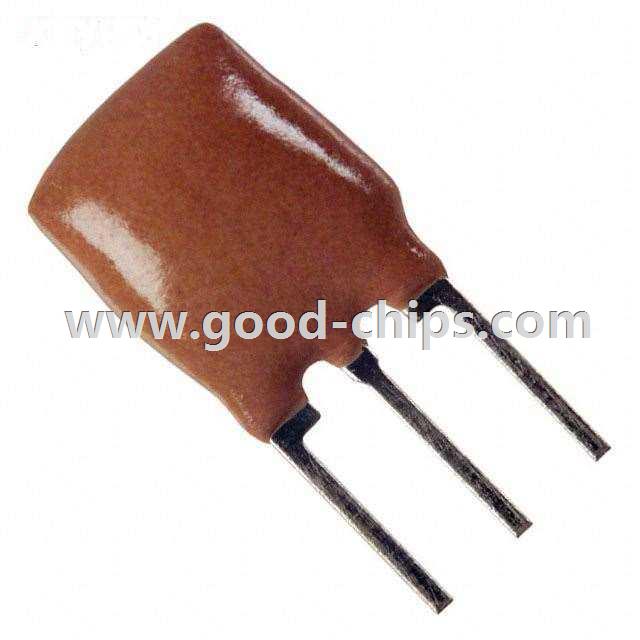

| Manufacturer Part Number: | AWCR-10.00MD |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Resonators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10MHz Ceramic Resonator Built in Capacitor 30pF ±0.3% 30 Ohm -25°C ~ 85°C Through Hole |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWCR-10.00MD Datasheet |
| Internal Part Number | 898-AWCR-10.00MD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AWCR-MD, 8-20.pdf AWCR-MD, 8-20.stp | |
| Category | Crystals and Oscillators | |
| Family | Resonators | |
| Manufacturer | Abracon LLC | |
| Series | AWCR | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Ceramic | |
| Frequency | 10MHz | |
| Frequency Stability | ±0.3% | |
| Frequency Tolerance | ±0.5% | |
| Features | Built in Capacitor | |
| Capacitance | 30pF | |
| Impedance | 30 Ohm | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | |
| Height | 0.394" (10.00mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWCR-10.00MD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWCR-10.00MD is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWCR-10.00MD is new and unused, you can buy AWCR-10.00MD Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWCR-10.00MD.
