| Manufacturer Part Number: | AWCCA-50N50H50-C01-B |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Wireless Charging Coils |
| Available Quantity: | 9056 Pieces |
| Unit Price: | Quote by Email |

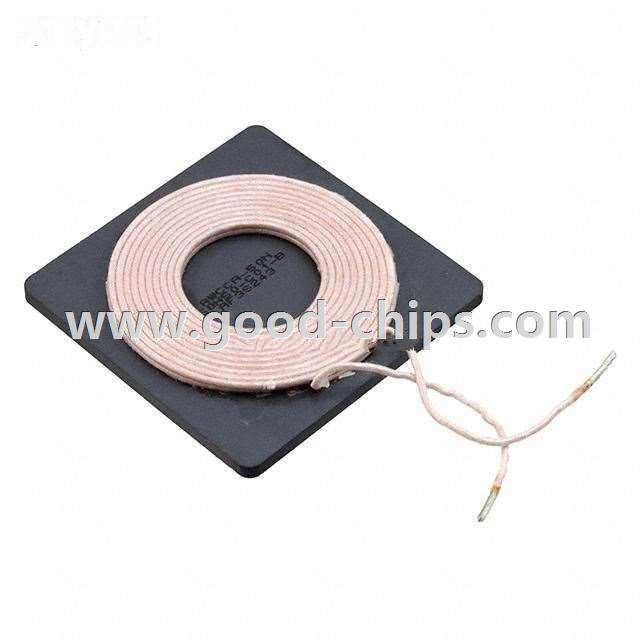

| Description: | 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver, Transmitter 72 mOhm 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AWCCA-50N50H50-C01-B Datasheet |
| Internal Part Number | 898-AWCCA-50N50H50-C01-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AWCCA Series; Wireless Charging Coil | |
| Online Catalog | Abracon Corporation | |
| Category | Inductors, Coils, Chokes | |
| Family | Wireless Charging Coils | |
| Manufacturer | Abracon LLC | |
| Series | AWCCA-50N50 | |
| Part Status | Active | |
| Function | Receiver, Transmitter | |
| Type | 1 Coil, 1 Layer | |
| Inductance | 24µH | |
| Tolerance | ±10% | |
| Current Rating | 5.7A | |
| Current - Saturation | 30A | |
| DC Resistance (DCR) | 72 mOhm | |
| Q @ Freq | 163 @ 100kHz | |
| Frequency - Self Resonant | 2.8MHz | |
| Operating Temperature | -25°C ~ 85°C | |
| Size / Dimension | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AWCCA-50N50H50-C01-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AWCCA-50N50H50-C01-B is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWCCA-50N50H50-C01-B is new and unused, you can buy AWCCA-50N50H50-C01-B Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWCCA-50N50H50-C01-B.
