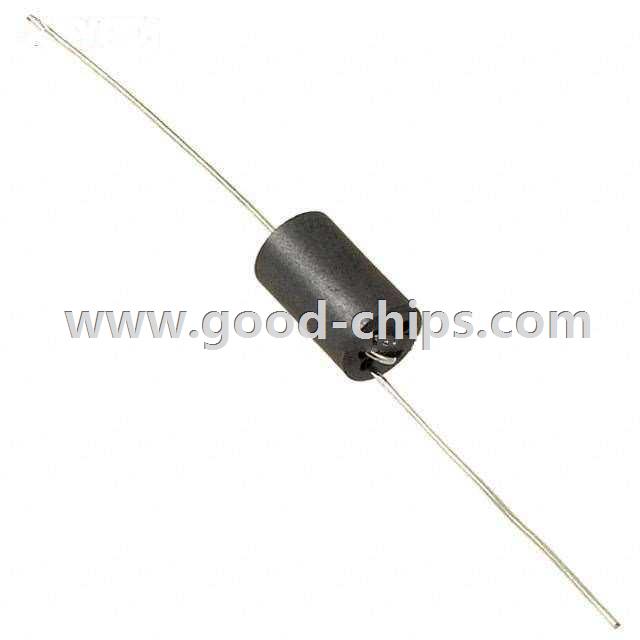

Manufacturer Part Number: | AWBC-09 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 10803 Pieces |
Unit Price: | Quote by Email |
Description: | 800 Ohm Ferrite Bead Axial Through Hole Power Line 1 Lines -40°C ~ 85°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AWBC-09 Datasheet |
Internal Part Number | 898-AWBC-09 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Abracon LLC | |
Series | AWBC | |
Packaging | Bulk | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 800 Ohm @ 100MHz | |
Current Rating (Max) | - | |
DC Resistance (DCR) (Max) | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Axial | |
Mounting Type | Through Hole | |
Height (Max) | 0.394" (10.00mm) | |
Size / Dimension | 0.236" Dia (6.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AWBC-09 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AWBC-09 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWBC-09 is new and unused, you can buy AWBC-09 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWBC-09.
