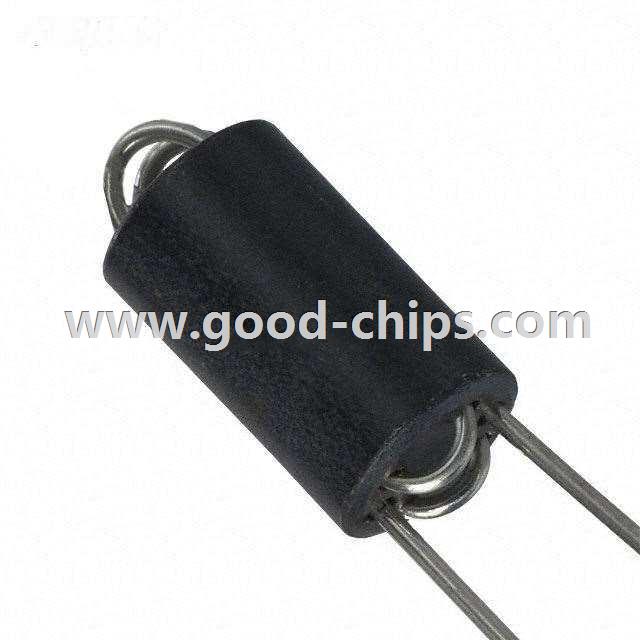

AWBC-05

AWBC-05
Manufacturer Part Number:AWBC-05
Manufacturer:
Product Category:Ferrite Beads and Chips
Available Quantity:11466 Pieces
Unit Price:Quote by Email
Description:550 Ohm Ferrite Bead Radial Through Hole Power Line 2 Lines -40°C ~ 85°C
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: AWBC-05 Datasheet
AWBC-05´s Parameters
Internal Part Number898-AWBC-05
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryFilters
FamilyFerrite Beads and Chips
ManufacturerAbracon LLC
SeriesAWBC
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Impedance @ Frequency550 Ohm @ 100MHz
Current Rating (Max)-
DC Resistance (DCR) (Max)-
Ratings-
Operating Temperature-40°C ~ 85°C
Package / CaseRadial
Mounting TypeThrough Hole
Height (Max)0.406" (10.31mm)
Size / Dimension0.236" Dia (6.00mm)
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartAWBC-05
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

AWBC-05 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWBC-05 is new and unused, you can buy AWBC-05 Abracon LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for AWBC-05.
