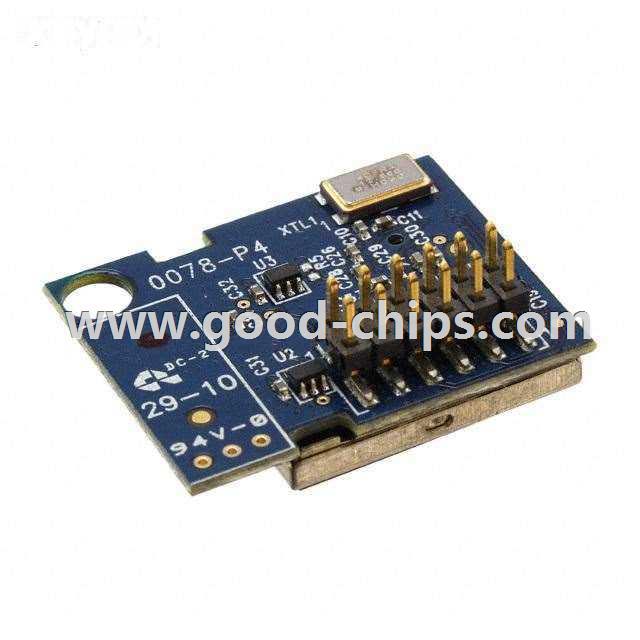

| Manufacturer Part Number: | AW24RUH-H2-AA |
|---|---|
| Manufacturer: | Artaflex Inc. |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9481 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE ISM>1GHZ U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AW24RUH-H2-AA Datasheet |
| Internal Part Number | 898-AW24RUH-H2-AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Online Catalog | AW24RUH-xx-AA | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Artaflex Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | General ISM > 1GHZ | |
| Protocol | - | |
| Modulation | DSSS, GFSK | |
| Frequency | 2.4GHz | |
| Data Rate | 1Mbps | |
| Power - Output | 21dBm | |
| Sensitivity | -93dBm | |
| Serial Interfaces | SPI | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | - | |
| Voltage - Supply | 2.5 V ~ 3.6 V | |
| Current - Receiving | 20mA ~ 23mA | |
| Current - Transmitting | 195mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | 0°C ~ 70°C | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AW24RUH-H2-AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AW24RUH-H2-AA is in stock for immediate shipping now. We are the distributor of Artaflex Inc. all series components. The condition of AW24RUH-H2-AA is new and unused, you can buy AW24RUH-H2-AA Artaflex Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AW24RUH-H2-AA.
