Manufacturer Part Number: | AUR9706AGD |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 1V 2 Output 1A 12-UFDFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AUR9706AGD Datasheet |
Internal Part Number | 898-AUR9706AGD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Standard Package | 5,000 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 2.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 1V | |
Voltage - Output (Max) | 3.3V | |
Current - Output | 1A | |
Frequency - Switching | 1.5MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 80°C (TA) | |
Mounting Type | Surface Mount | |

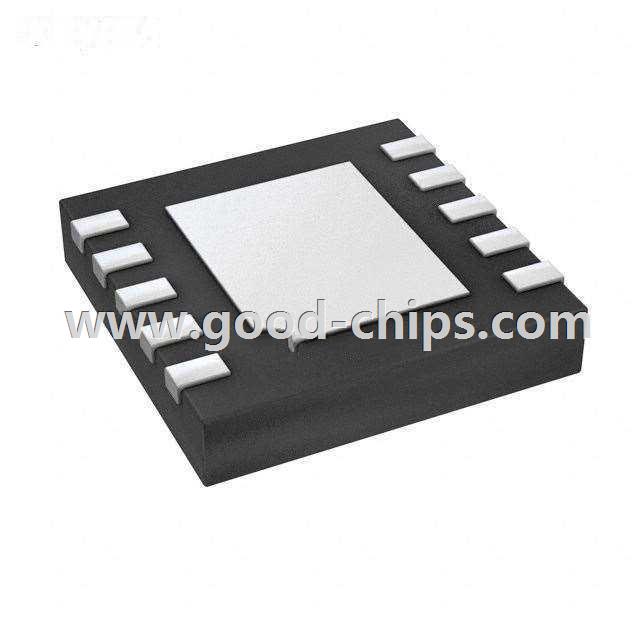

Package / Case | 12-UFDFN Exposed Pad | |
Supplier Device Package | U-DFN3030-12 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AUR9706AGD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AUR9706AGD is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AUR9706AGD is new and unused, you can buy AUR9706AGD Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AUR9706AGD.
