| Manufacturer Part Number: | ATXMEGAB1-XPLD |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9051 Pieces |
| Unit Price: | Quote by Email |

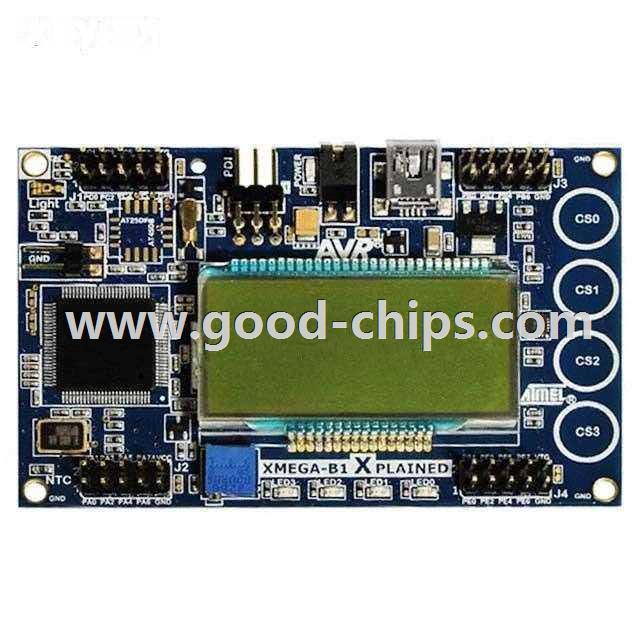

| Description: | ATxmega128B1 XMEGA-B1 Xplained AVR® ATxmega MCU 16-Bit AVR Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATXMEGAB1-XPLD Datasheet |
| Internal Part Number | 898-ATXMEGAB1-XPLD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | XMEGA B1 ADC Voltmeter Application Note | |
| Product Training Modules | Sensors Xplained | |
| Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - Basic Power-Saving Techniques Atmel: picoPower Labs - The Parrot | |
| Design Resources | Basic LCD Example for XMEGA-B1 ADC Example for XMEGA RF Communication – XMEGA-B1 Xplained Development Tool Selector | |
| Featured Product | Atmel - AVR® XMEGA® LCD Peripheral | |
| Online Catalog | ATxmega256A3BU XMEGA-A3BU Xplained Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Atmel | |
| Series | AVR® ATxmega | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 16-Bit | |
| Core Processor | AVR | |
| Operating System | - | |
| Platform | XMEGA-B1 Xplained | |
| For Use With/Related Products | ATxmega128B1 | |
| Mounting Type | Fixed | |
| Contents | Board(s), LCD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATXMEGAB1-XPLD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATXMEGAB1-XPLD is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATXMEGAB1-XPLD is new and unused, you can buy ATXMEGAB1-XPLD Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATXMEGAB1-XPLD.
