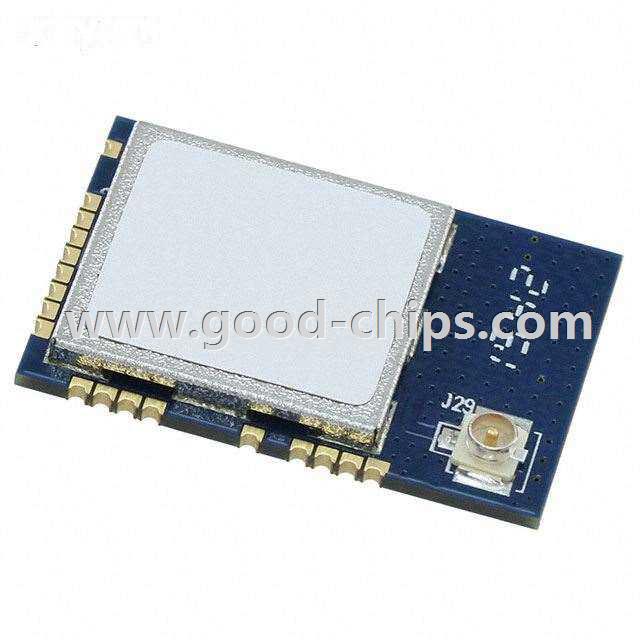

| Manufacturer Part Number: | ATWINC1510-MR210UB |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9307 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE WIFI U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATWINC1510-MR210UB Datasheet |
| Internal Part Number | 898-ATWINC1510-MR210UB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Online Catalog | ATWINC1500 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Atmel | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | WiFi | |
| Protocol | 802.11b/g/n | |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | |
| Frequency | 2.4GHz | |
| Data Rate | 72.2Mbps | |
| Power - Output | 19.5dBm | |
| Sensitivity | -98dBm | |
| Serial Interfaces | I²C, SPI, UART | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | 8MB Flash, 128kB RAM | |
| Voltage - Supply | 3 V ~ 4.2 V | |
| Current - Receiving | 52.5mA ~ 70.1mA | |
| Current - Transmitting | 132mA ~ 294mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATWINC1510-MR210UB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATWINC1510-MR210UB is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATWINC1510-MR210UB is new and unused, you can buy ATWINC1510-MR210UB Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATWINC1510-MR210UB.
