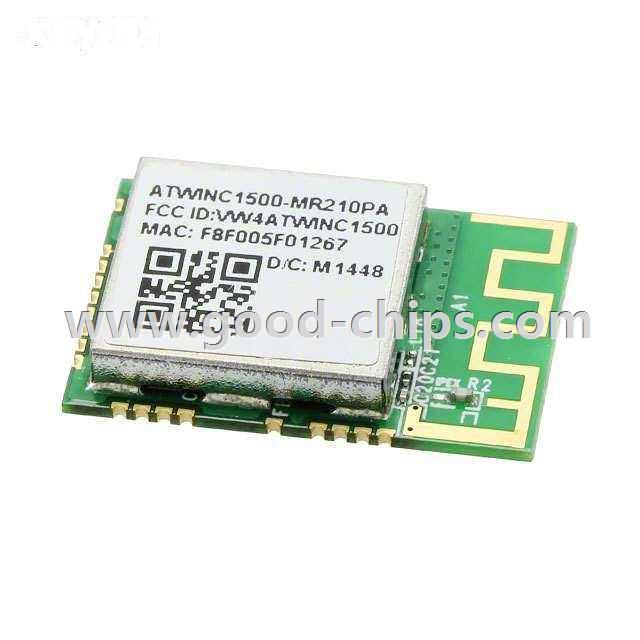

| Manufacturer Part Number: | ATWINC1500-MR210PA |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9492 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE WIFI TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATWINC1500-MR210PA Datasheet |
| Internal Part Number | 898-ATWINC1500-MR210PA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to IEEE 802.15.4 Low Power Wireless Networks SmartConnect Wi-Fi Solutions for IoT | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | Atmel - WINC1500 | |
| PCN Part Status Change | Die Rev. 26/Nov/2015 | |
| HTML Datasheet | ATWINC1500-MR210PA.html | |
| Online Catalog | ATWINC1500 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Atmel | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Discontinued | |
| RF Family/Standard | WiFi | |
| Protocol | 802.11b/g/n | |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | |
| Frequency | 2.4GHz | |
| Data Rate | 72.2Mbps | |
| Power - Output | 19dBm | |
| Sensitivity | -98dBm | |
| Serial Interfaces | I²C, SPI, UART | |
| Antenna Type | Integrated, Trace | |
| Memory Size | 4MB Flash, 128kB ROM, 64kB RAM | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Current - Receiving | 29mA ~ 68mA | |
| Current - Transmitting | 29mA ~ 230mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 28-SMD Module | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATWINC1500-MR210PA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATWINC1500-MR210PA is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATWINC1500-MR210PA is new and unused, you can buy ATWINC1500-MR210PA Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATWINC1500-MR210PA.
