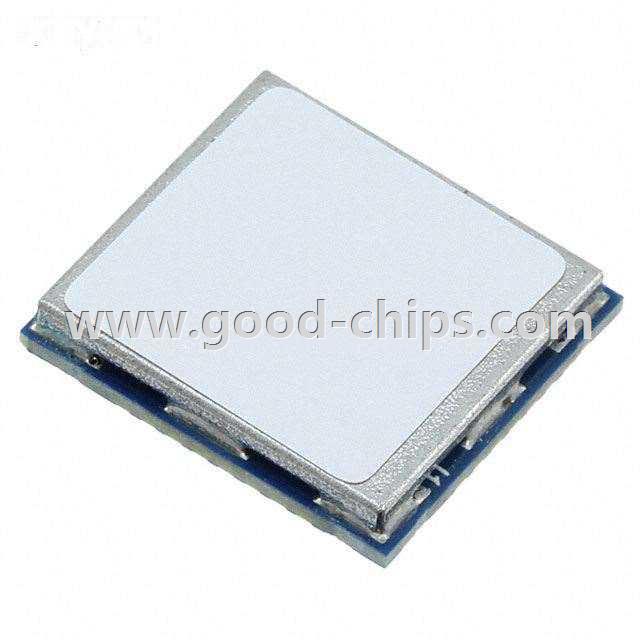

Manufacturer Part Number: | ATWILC1000-MR1100B |
---|---|
Manufacturer: | Atmel |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9175 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE WIFI |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATWILC1000-MR1100B Datasheet |
Internal Part Number | 898-ATWILC1000-MR1100B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Introducing Atmel Studio 7 | |
Design Resources | Development Tool Selector IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Atmel | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | WiFi | |
Protocol | 802.11b/g/n | |
Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | |
Frequency | 2.4GHz | |
Data Rate | 72.2Mbps | |
Power - Output | 19dBm | |
Sensitivity | -98dBm | |
Serial Interfaces | I²C, SDIO, SPI, UART | |
Antenna Type | Not Included | |
Memory Size | - | |
Voltage - Supply | 3 V ~ 4.2 V | |
Current - Receiving | 29mA ~ 68mA | |
Current - Transmitting | 29mA ~ 230mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATWILC1000-MR1100B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATWILC1000-MR1100B is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATWILC1000-MR1100B is new and unused, you can buy ATWILC1000-MR1100B Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATWILC1000-MR1100B.
