| Manufacturer Part Number: | ATTINY2313A-MMH |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9615 Pieces |
| Unit Price: | Quote by Email |
| Description: | AVR AVR® ATtiny Microcontroller IC 8-Bit 20MHz 2KB (1K x 16) FLASH 20-VQFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATTINY2313A-MMH Datasheet |
| Internal Part Number | 898-ATTINY2313A-MMH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCU Product Line Introduction tinyAVR Introduction Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Copper Bonding Wire 20/Sep/2013 | |
| PCN Other | MSL Update 26/Feb/2014 | |
| Online Catalog | AVR® ATtiny 2KB Flash | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | AVR® ATtiny | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | AVR | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 18 | |
| Program Memory Size | 2KB (1K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 128 x 8 | |
| RAM Size | 128 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V | |
| Data Converters | - | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

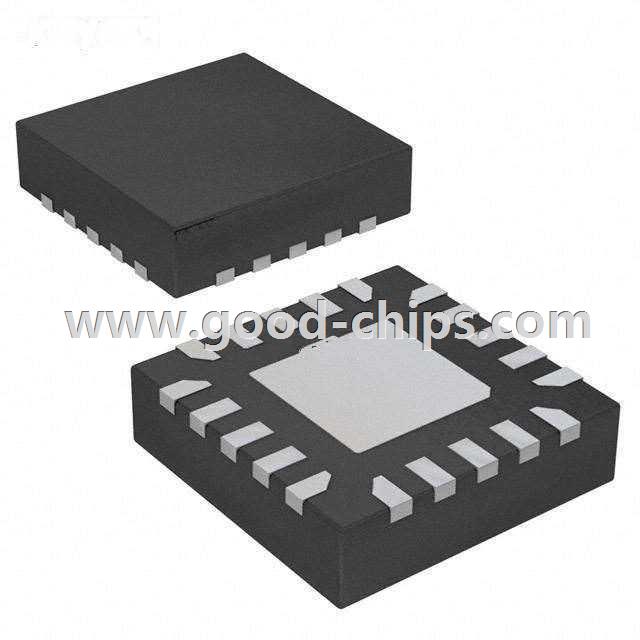

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-VQFN (3x3) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATTINY2313A-MMH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATTINY2313A-MMH is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATTINY2313A-MMH is new and unused, you can buy ATTINY2313A-MMH Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATTINY2313A-MMH.
