| Manufacturer Part Number: | ATSTK500 |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9210 Pieces |
| Unit Price: | Quote by Email |
| Description: | AT90S8515 AVR® MCU 8-Bit AVR Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATSTK500 Datasheet |
| Internal Part Number | 898-ATSTK500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCU Product Line Introduction | |
| Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - Basic Power-Saving Techniques Atmel: picoPower Labs - The Parrot | |
| Design Resources | Development Tool Selector | |
| Online Catalog | AVR Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Atmel | |
| Series | AVR® | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 8-Bit | |
| Core Processor | AVR | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | AT90S8515 | |
| Mounting Type | Socket | |

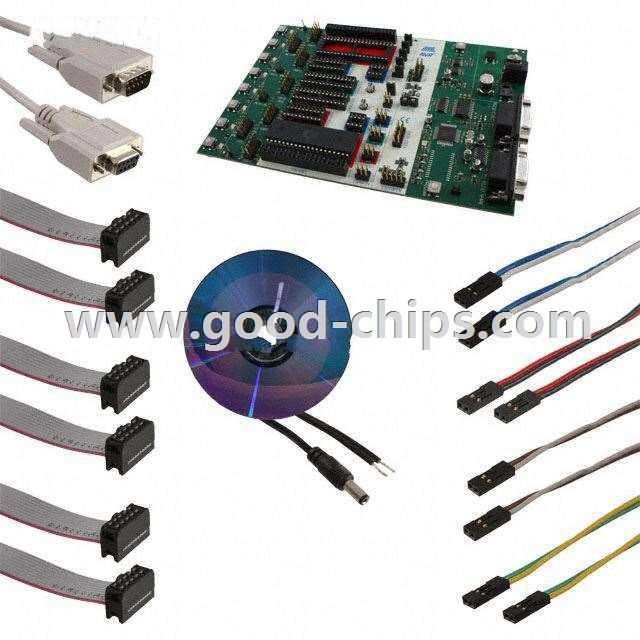

| Contents | Board(s), Cable(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATSTK500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATSTK500 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATSTK500 is new and unused, you can buy ATSTK500 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATSTK500.
