| Manufacturer Part Number: | ATSAMD11D14A-UUT |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM® Cortex®-M0+ SAM D11D Microcontroller IC 32-Bit 48MHz 16KB (16K x 8) FLASH 20-WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATSAMD11D14A-UUT Datasheet |
| Internal Part Number | 898-ATSAMD11D14A-UUT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 Atmel START Overview Atmel START Sensors: Introduction (#1) Atmel START Sensors: Hello World (#2) Atmel START Sensors: Best Practice Code Cleanup (#3) Atmel START Sensors: Configuring and Reading the ADC (#4) Atmel START Sensors: ADC with Delay, Visualization (#5) Atmel START Sensors: ADC with Timer Callback, Visualization (#6) Atmel START Sensors: ADC Timer GPIO (#7) Atmel START Sensors: Measuring Power and Going to Sleep (#8) Atmel START Sensors: SAM L21 Low Power Examples & Training Material (#9) Atmel START Sensors: Adding a Temperature Sensor (#10) Atmel START Sensors: Configuring the SPI for the EBDG DGI (#11) Atmel START Sensors: Implementing the Data Streamer Protocol (#12) | |
| Online Catalog | ATSAMD11D14 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | SAM D11D | |
| Packaging | Bulk | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-M0+ | |
| Core Size | 32-Bit | |
| Speed | 48MHz | |
| Connectivity | I²C, LIN, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT | |
| Number of I/O | 18 | |
| Program Memory Size | 16KB (16K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 4K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.62 V ~ 3.63 V | |
| Data Converters | A/D 8x12b, D/A 1x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

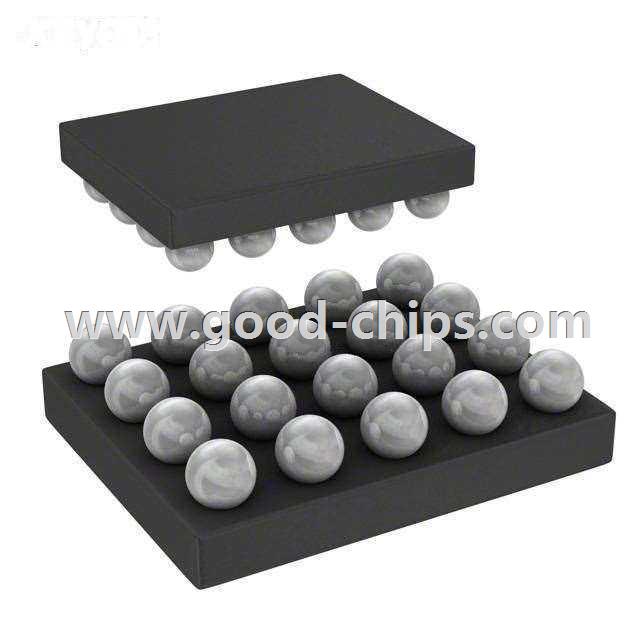

| Package / Case | 20-XFBGA, CSPBGA | |
| Supplier Device Package | 20-WLCSP | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATSAMD11D14A-UUT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATSAMD11D14A-UUT is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATSAMD11D14A-UUT is new and unused, you can buy ATSAMD11D14A-UUT Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATSAMD11D14A-UUT.
