| Manufacturer Part Number: | ATSAM4S-WPIR-RD |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

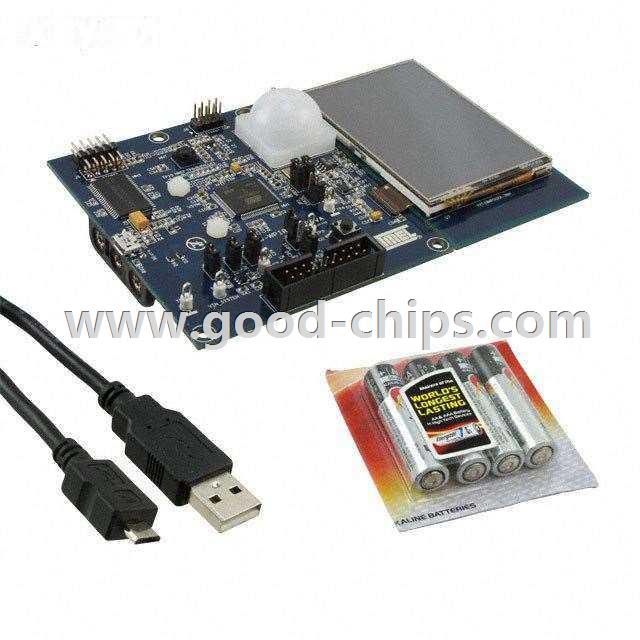

| Description: | SAM4S16C AT91SAM4 MCU 32-Bit ARM® Cortex®-M4 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATSAM4S-WPIR-RD Datasheet |
| Internal Part Number | 898-ATSAM4S-WPIR-RD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | PIR Camera Sensor Solution Using the SAM3S Series SAM4S Cortex-M4 Series Microcontroller | |
| Video File | Introducing Atmel Studio 7 Atmel START Overview Atmel: picoPower Labs - The Parrot | |
| Design Resources | Development Tool Selector | |
| Featured Product | Atmel - SAM4S Series Microcontrollers | |
| Online Catalog | AT91SAM4S16C Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Atmel | |
| Series | AT91SAM4 | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 32-Bit | |
| Core Processor | ARM® Cortex®-M4 | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | SAM4S16C | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s), LCD, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATSAM4S-WPIR-RD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATSAM4S-WPIR-RD is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATSAM4S-WPIR-RD is new and unused, you can buy ATSAM4S-WPIR-RD Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATSAM4S-WPIR-RD.
