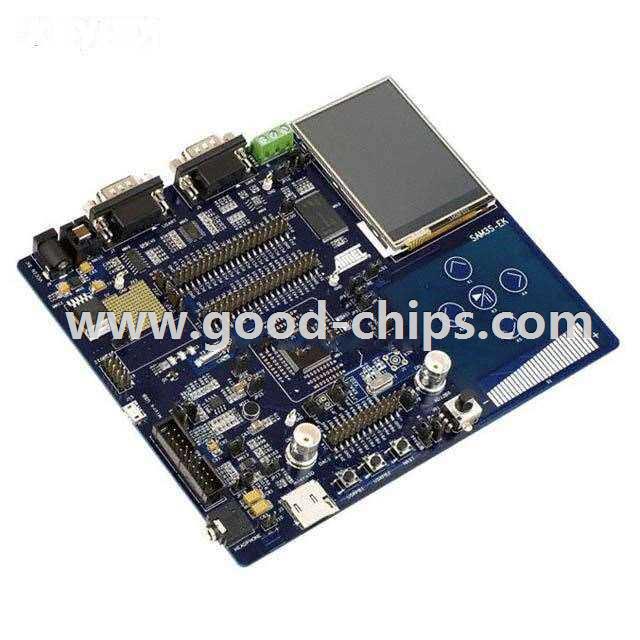

Manufacturer Part Number: | ATSAM3S-EK2 |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9027 Pieces |
Unit Price: | Quote by Email |
Description: | SAM3SD8 AT91SAM3 MCU 32-Bit ARM® Cortex®-M3 Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATSAM3S-EK2 Datasheet |
Internal Part Number | 898-ATSAM3S-EK2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Introducing Atmel Studio 7 Atmel START Overview Atmel: picoPower Labs - The Parrot | |
Design Resources | SAM3S-EK2 Design & Mfg Files SAM3S-EK2 Design & Mfg Files Information SAM3S-EK2 Demo Release Notes Development Tool Selector | |
Featured Product | Atmel - SAM3S Series MCUs | |
Online Catalog | ATSAM3S and ATSAM3SD Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Atmel | |
Series | AT91SAM3 | |
Part Status | Active | |
Board Type | Evaluation Platform | |
Type | MCU 32-Bit | |
Core Processor | ARM® Cortex®-M3 | |
Operating System | - | |
Platform | - | |
For Use With/Related Products | SAM3SD8 | |
Mounting Type | Fixed | |
Contents | Board(s), Cable(s), LCD | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATSAM3S-EK2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATSAM3S-EK2 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATSAM3S-EK2 is new and unused, you can buy ATSAM3S-EK2 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATSAM3S-EK2.
