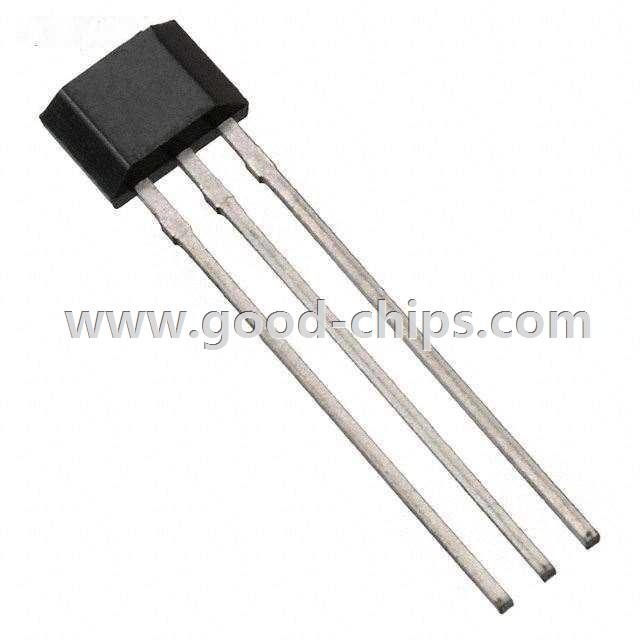

Manufacturer Part Number: | ATS177-PL-B-B |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Magnetic Sensors - Switches (Solid State) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC HALL SENSOR LATCH 25MA SIP-3L |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATS177-PL-B-B Datasheet |
Internal Part Number | 898-ATS177-PL-B-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 08/Nov/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Sensors, Transducers | |
Family | Magnetic Sensors - Switches (Solid State) | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Function | Latch | |
Technology | Hall Effect | |
Polarization | South Pole | |
Sensing Range | 10mT Trip, -10mT Release | |
Test Condition | 25°C | |
Voltage - Supply | 3.5 V ~ 20 V | |
Current - Supply (Max) | 10mA | |
Current - Output (Max) | 25mA | |
Output Type | Open Collector | |
Features | Temperature Compensated | |
Operating Temperature | -20°C ~ 85°C (TA) | |
Package / Case | 3-SIP | |
Supplier Device Package | 3-SIP | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATS177-PL-B-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATS177-PL-B-B is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of ATS177-PL-B-B is new and unused, you can buy ATS177-PL-B-B Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATS177-PL-B-B.
