| Manufacturer Part Number: | ATMEGA16HVB-8X3R |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AVR AVR® ATmega Microcontroller IC 8-Bit 8MHz 16KB (8K x 16) FLASH 44-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATMEGA16HVB-8X3R Datasheet |
| Internal Part Number | 898-ATMEGA16HVB-8X3R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | EOL 31/May/2016 | |
| PCN Design/Specification | Copper Bonding Wire Update 30/Jan/2015 | |
| PCN Packaging | Tape and Reel Label Update 10/Feb/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | AVR® ATmega | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Core Processor | AVR | |
| Core Size | 8-Bit | |
| Speed | 8MHz | |
| Connectivity | I²C, SPI | |
| Peripherals | POR, WDT | |
| Number of I/O | 17 | |
| Program Memory Size | 16KB (8K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 512 x 8 | |
| RAM Size | 1K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 25 V | |
| Data Converters | A/D 7x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

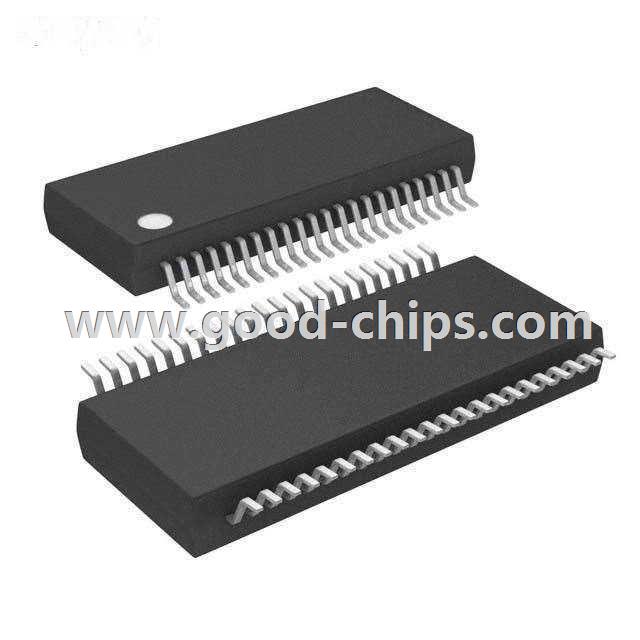

| Package / Case | 44-TFSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 44-TSSOP | |
| Standard Package | 3,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATMEGA16HVB-8X3R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATMEGA16HVB-8X3R is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATMEGA16HVB-8X3R is new and unused, you can buy ATMEGA16HVB-8X3R Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATMEGA16HVB-8X3R.
