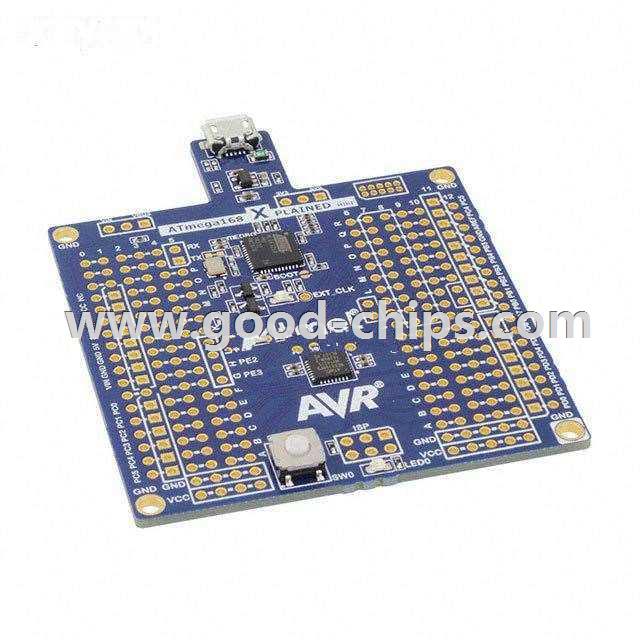

Manufacturer Part Number: | ATMEGA168PB-XMINI |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9065 Pieces |
Unit Price: | Quote by Email |
Description: | ATmega168 ATmega168 Xplained Mini AVR® ATmega MCU 8-Bit AVR Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATMEGA168PB-XMINI Datasheet |
Internal Part Number | 898-ATMEGA168PB-XMINI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - Basic Power-Saving Techniques Atmel: picoPower Labs - The Parrot | |
Design Resources | Development Tool Selector | |
Featured Product | megaAVR "PB" Devices | |
Online Catalog | ATmega168PB Xplained Mini Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Atmel | |
Series | AVR® ATmega | |
Part Status | Active | |
Board Type | Evaluation Platform | |
Type | MCU 8-Bit | |
Core Processor | AVR | |
Operating System | - | |
Platform | ATmega168 Xplained Mini | |
For Use With/Related Products | ATmega168 | |
Mounting Type | Fixed | |
Contents | Board(s) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATMEGA168PB-XMINI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATMEGA168PB-XMINI is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATMEGA168PB-XMINI is new and unused, you can buy ATMEGA168PB-XMINI Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATMEGA168PB-XMINI.
