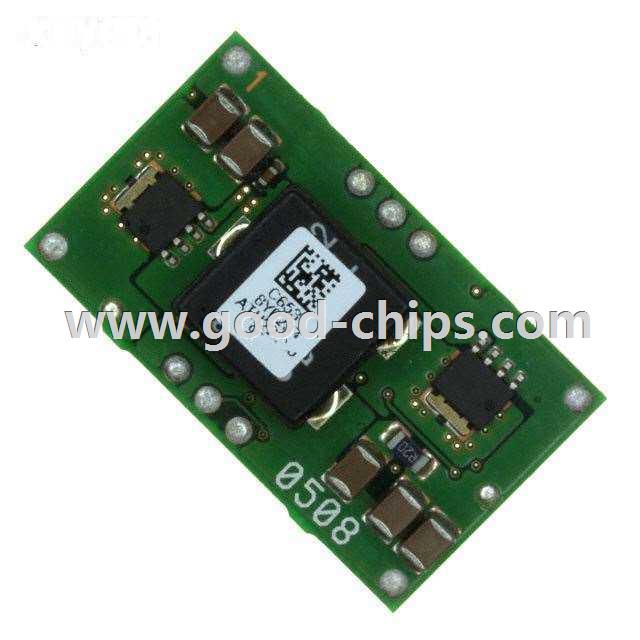

| Manufacturer Part Number: | ATH22T05-9SJ |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC-DC 99W 5VIN 22A SGL SMD |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATH22T05-9SJ Datasheet |
| Internal Part Number | 898-ATH22T05-9SJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | ATH22 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 0.8 ~ 3.6 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 22A | |
| Power (Watts) - Manufacture Series | 99W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module | |
| Size / Dimension | 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.6mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 96% | |
| Power (Watts) - Max | 99W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATH22T05-9SJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATH22T05-9SJ is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of ATH22T05-9SJ is new and unused, you can buy ATH22T05-9SJ Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATH22T05-9SJ.
