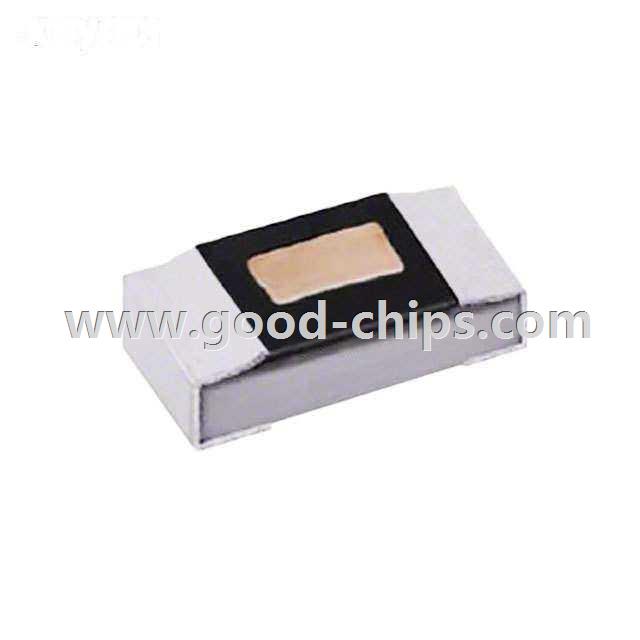

| Manufacturer Part Number: | ATFC-0402-2N3-BT |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.3nH Unshielded Thin Film Inductor 440mA 350 mOhm Max 0402 (1005 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATFC-0402-2N3-BT Datasheet |
| Internal Part Number | 898-ATFC-0402-2N3-BT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ATFC RF Thin Film Chip Inductors | |
| 3D Model | ATFC-0402.pdf ATFC-0402.stp | |
| Online Catalog | ATFC Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | ATFC-0402 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Thin Film | |
| Material - Core | Ceramic | |
| Inductance | 2.3nH | |
| Tolerance | ±0.1nH | |
| Current Rating | 440mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 350 mOhm Max | |
| Q @ Freq | 13 @ 500MHz | |
| Frequency - Self Resonant | 8GHz | |
| Ratings | - | |
| Operating Temperature | -45°C ~ 85°C | |
| Frequency - Test | 500kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0402 (1005 Metric) | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| Height - Seated (Max) | 0.015" (0.37mm) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATFC-0402-2N3-BT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATFC-0402-2N3-BT is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ATFC-0402-2N3-BT is new and unused, you can buy ATFC-0402-2N3-BT Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATFC-0402-2N3-BT.
