| Manufacturer Part Number: | ATEVK1070B |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

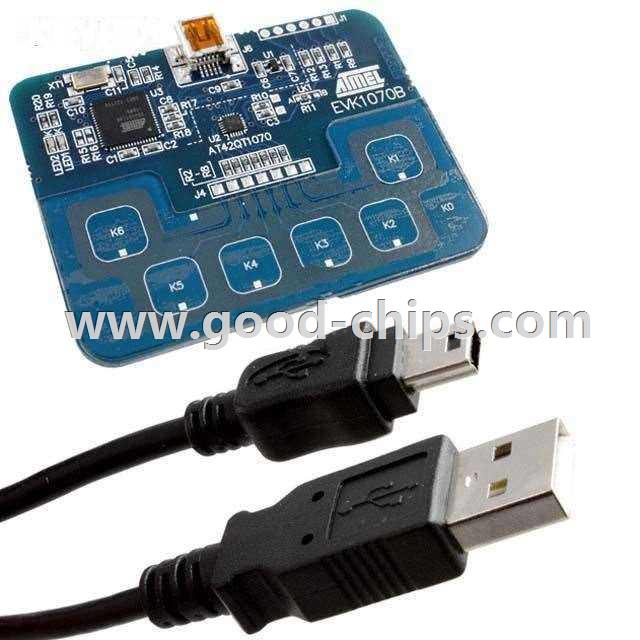

| Description: | AT42QT1070 QTouch™ Touch, Capacitive Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATEVK1070B Datasheet |
| Internal Part Number | 898-ATEVK1070B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Software Download | EVK1070B Software | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | ATEVK1070B: 7 Button Capacitive Touch | |
| PCN Obsolescence/ EOL | Multiple Devices 21/Jan/2014 Multiple Devices Revision A 26/Mar/2014 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Atmel | |
| Series | QTouch™ | |
| Part Status | Obsolete | |
| Sensor Type | Touch, Capacitive | |
| Sensing Range | 6 Buttons/Keys | |
| Interface | USB | |
| Sensitivity | - | |
| Voltage - Supply | 5V, USB | |
| Embedded | No | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | AT42QT1070 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATEVK1070B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATEVK1070B is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATEVK1070B is new and unused, you can buy ATEVK1070B Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATEVK1070B.
