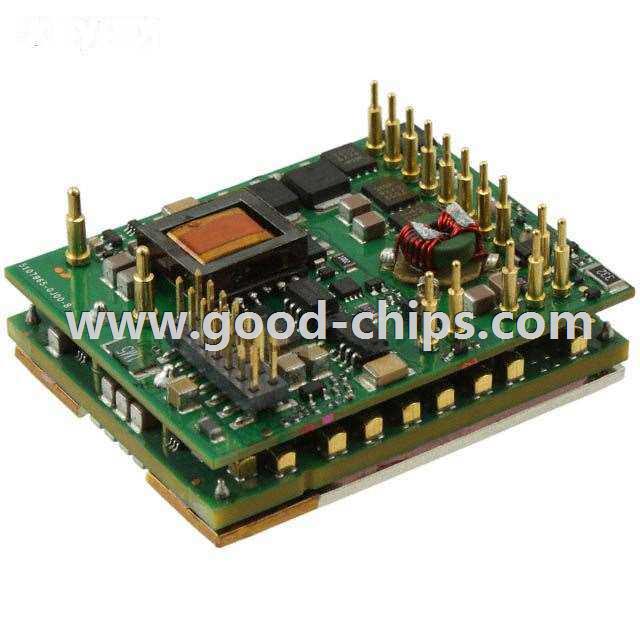

Manufacturer Part Number: | ATCR250-48D12-03J |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | POWER SUPPLY 36-75V 250W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATCR250-48D12-03J Datasheet |
Internal Part Number | 898-ATCR250-48D12-03J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | Declaration of Conformity | |
PCN Packaging | CSA Marking 20/Sep/2013 | |
Online Catalog | ATCR250 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | ATCA | |
Packaging | Bulk | |
Part Status | Active | |
Type | Intermediate Bus Converter, Digital | |
Number of Outputs | 2 | |
Voltage - Input (Min) | -36V | |
Voltage - Input (Max) | -72V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | 3.3V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 20.83A, 4.5A | |
Power (Watts) - Manufacture Series | 250W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 30-DIP Module | |
Size / Dimension | 2.32" L x 1.81" W x 0.83" H (59mm x 46mm x 21.1mm) | |
Operating Temperature | -25°C ~ 85°C | |
Efficiency | 89% | |
Power (Watts) - Max | 250W | |
Standard Package | 8 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATCR250-48D12-03J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATCR250-48D12-03J is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of ATCR250-48D12-03J is new and unused, you can buy ATCR250-48D12-03J Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATCR250-48D12-03J.
