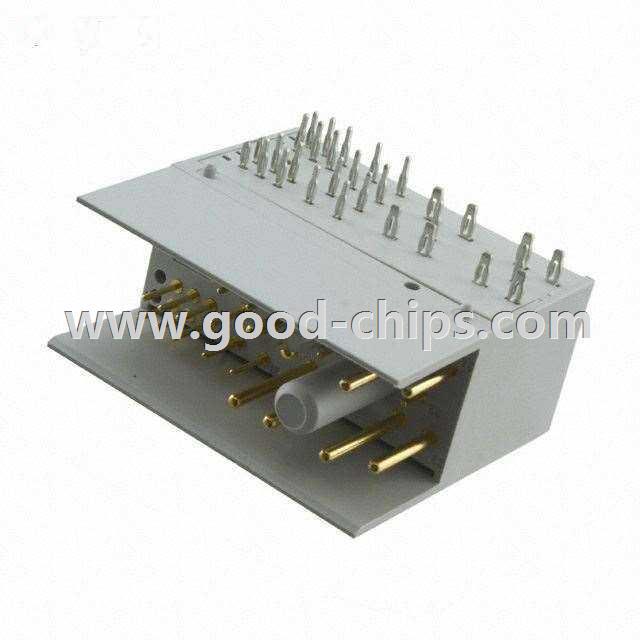

| Manufacturer Part Number: | ATC30W08MAE1S5X |
|---|---|
| Manufacturer: | Conec |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN ATCA 30POS PLUG R/A PRESFIT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATC30W08MAE1S5X Datasheet |
| Internal Part Number | 898-ATC30W08MAE1S5X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Conec | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | Front Board | |
| Connector Type | Plug, Male Pins | |
| Connector Style | AdvancedTCA® | |
| Number of Positions | 34 | |
| Number of Positions Loaded | 30 | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 26 Signal, 8 Power | |
| Features | Mating Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Color | Gray | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Standard Package | 140 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATC30W08MAE1S5X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATC30W08MAE1S5X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of ATC30W08MAE1S5X is new and unused, you can buy ATC30W08MAE1S5X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATC30W08MAE1S5X.
