Manufacturer Part Number: | ATAVRMC300 |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |

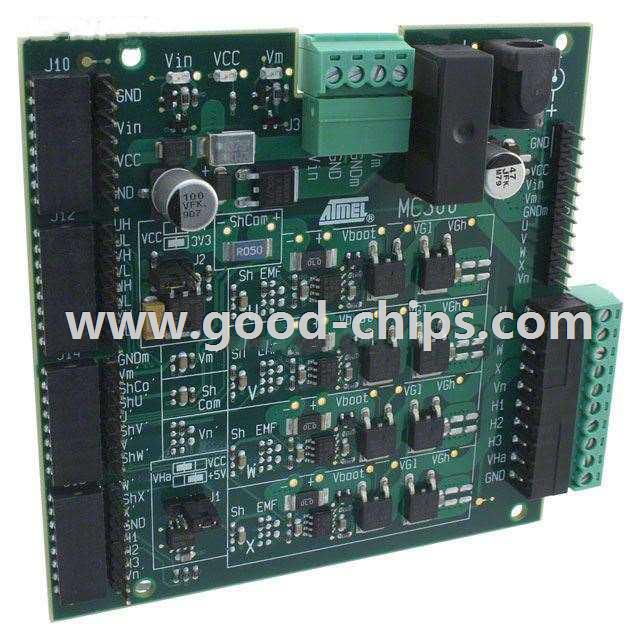

Description: | ATmega32M1 AVR® Series Power Management, Motor Control Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATAVRMC300 Datasheet |
Internal Part Number | 898-ATAVRMC300 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MCU Product Line Introduction megaAVR Introduction | |
Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - Basic Power-Saving Techniques | |
Design Resources | Development Tool Selector | |
Online Catalog | MC300 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Atmel | |
Series | AVR® | |
Part Status | Active | |
Main Purpose | Power Management, Motor Control | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | ATmega32M1 | |
Primary Attributes | 3-Ph BLDC, Brushed DC, Stepper Motor Driver Board, 40V, 6A | |
Secondary Attributes | Requires ATAVRMC301, ATAVRMC303, or ATAVRMC310 | |
Supplied Contents | Board, Motor | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATAVRMC300 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATAVRMC300 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATAVRMC300 is new and unused, you can buy ATAVRMC300 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATAVRMC300.
