| Manufacturer Part Number: | ATAVRMC100 |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

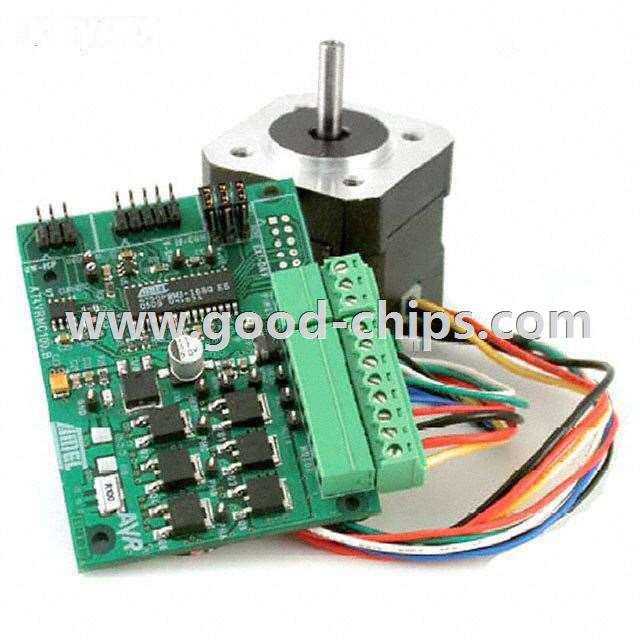

| Description: | AT90PWM3 AVR® Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATAVRMC100 Datasheet |
| Internal Part Number | 898-ATAVRMC100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Atmel | |
| Series | AVR® | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | AT90PWM3 | |
| Primary Attributes | 3-Ph Brushless DC (BLDC) Motors | |
| Secondary Attributes | Short-Circuit Protection | |
| Supplied Contents | Board, Motor | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATAVRMC100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATAVRMC100 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATAVRMC100 is new and unused, you can buy ATAVRMC100 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATAVRMC100.
