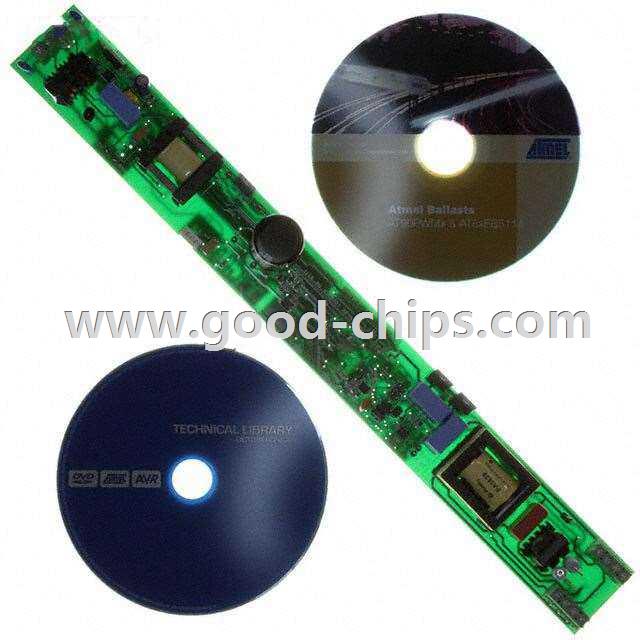

| Manufacturer Part Number: | ATAVRFBKIT |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AT90PWM2, AT90PWM3 AVR® Series Lighting, Ballast Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATAVRFBKIT Datasheet |
| Internal Part Number | 898-ATAVRFBKIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | ATAVRFBKIT: Dimmable Fluorescent Ballast | |
| PCN Obsolescence/ EOL | AVR Development Tools 31/Aug/2012 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Atmel | |
| Series | AVR® | |
| Part Status | Obsolete | |
| Main Purpose | Lighting, Ballast Control | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | AT90PWM2, AT90PWM3 | |
| Primary Attributes | 18W, Up to 2 Type T8 Lamps, Dimmable, Auto Detect of Swiss or DALI | |
| Secondary Attributes | Power Factor Corrected (PFC), 90 to 265 VAC, 90 to 370 VDC | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATAVRFBKIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATAVRFBKIT is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATAVRFBKIT is new and unused, you can buy ATAVRFBKIT Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATAVRFBKIT.
