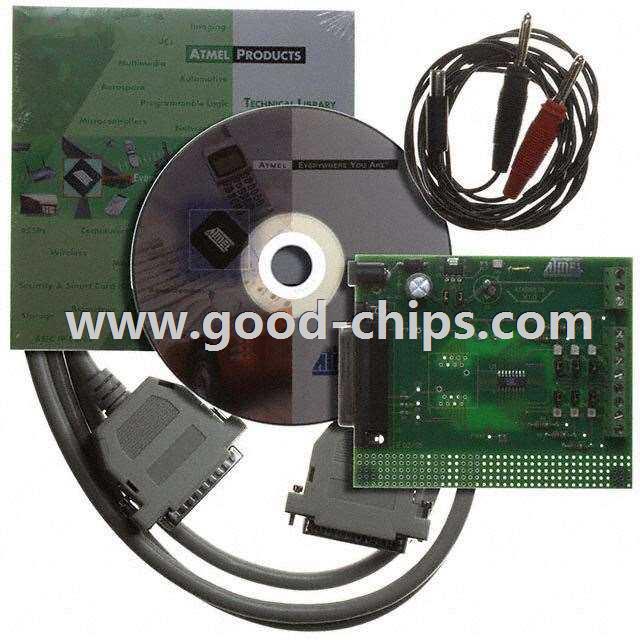

| Manufacturer Part Number: | ATAB6819 |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATA6829, T6819 - Power Management, Half H-Bridge Driver (Internal FET) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATAB6819 Datasheet |
| Internal Part Number | 898-ATAB6819 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Atmel | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Half H-Bridge Driver (Internal FET) | |
| Embedded | No | |
| Utilized IC / Part | ATA6829, T6819 | |
| Primary Attributes | 3 Channel High and Low Side Internal Switch | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATAB6819 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATAB6819 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATAB6819 is new and unused, you can buy ATAB6819 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATAB6819.
