Manufacturer Part Number: | ATA6844-DK |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

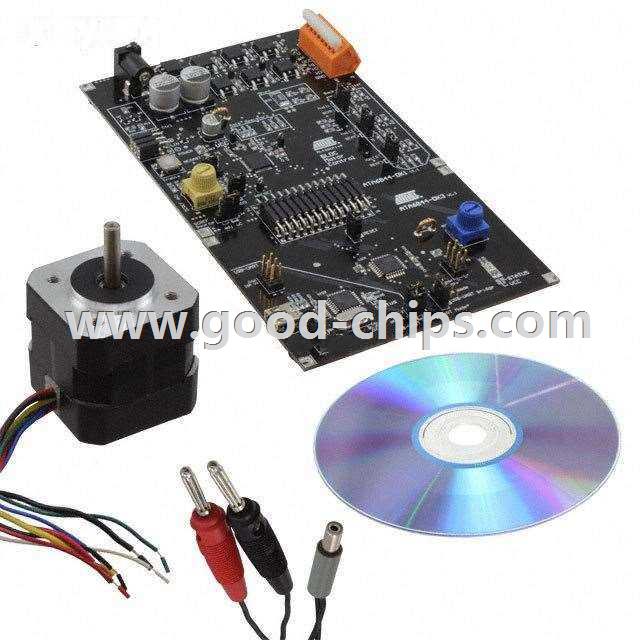

Description: | ATA6844 - Power Management, Motor Control Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATA6844-DK Datasheet |
Internal Part Number | 898-ATA6844-DK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Introducing Atmel Studio 7 | |
Design Resources | Development Tool Selector | |
Featured Product | Atmel - ATA6844-DK BLDC Motor Control Kit | |
Online Catalog | ATA6844 BLDC Motor Control Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Atmel | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Motor Control | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | ATA6844 | |
Primary Attributes | 3 Channel H-Bridge Driver | |
Secondary Attributes | - | |
Supplied Contents | 2 Boards | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATA6844-DK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATA6844-DK is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATA6844-DK is new and unused, you can buy ATA6844-DK Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA6844-DK.
