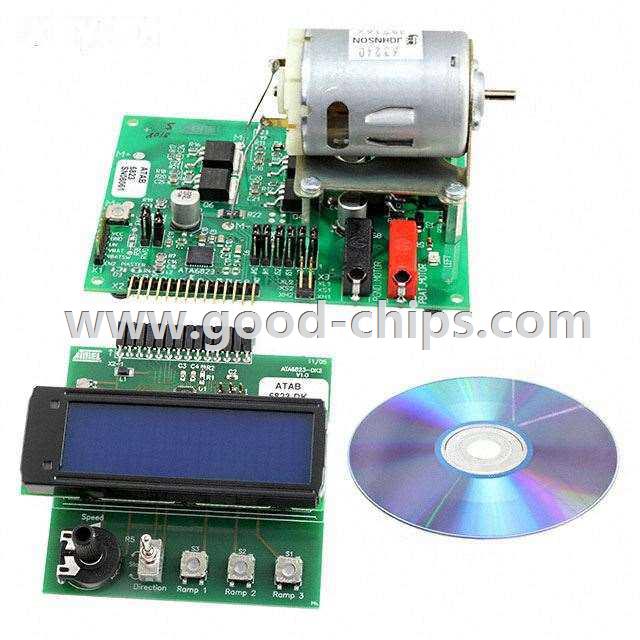

| Manufacturer Part Number: | ATA6823-DK |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATA6823 - Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATA6823-DK Datasheet |
| Internal Part Number | 898-ATA6823-DK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ATA6823 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Atmel | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | No | |
| Utilized IC / Part | ATA6823 | |
| Primary Attributes | Brush DC Motors, 8 ~ 18V, LIN Interface, Watchdog, 5V Regulator | |
| Secondary Attributes | Cross Conduction, Under/Over Voltage, Short Circuit, and Temperature Protection | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATA6823-DK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATA6823-DK is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATA6823-DK is new and unused, you can buy ATA6823-DK Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA6823-DK.
