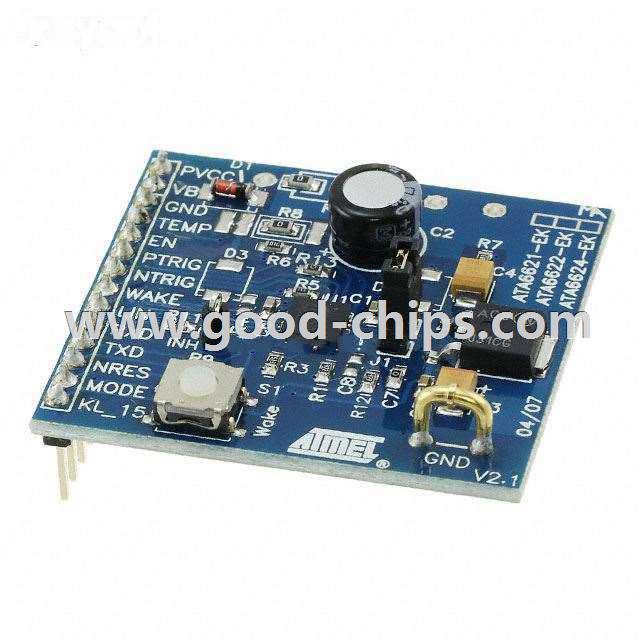

| Manufacturer Part Number: | ATA6624-EK |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATA6624 - Interface, LIN Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATA6624-EK Datasheet |
| Internal Part Number | 898-ATA6624-EK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCU Product Line Introduction | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ATA6622 and ATA6624 Development Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Atmel | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, LIN | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | ATA6624 | |
| Primary Attributes | LIN-SBC (System-Basis-Chip) Transceiver, LIN 2.0, Voltage Regulator, Window Watchdog | |
| Secondary Attributes | 4 Power Modes: Pre-Normal, Normal, Sleep, Silent, 20-QFN | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATA6624-EK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATA6624-EK is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATA6624-EK is new and unused, you can buy ATA6624-EK Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA6624-EK.
