| Manufacturer Part Number: | ATA5745C-PXPW |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | RF Receivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | - RF Receiver UHF, ASK, FSK 433MHz -113dBm 20 kbps PCB, Surface Mount 24-VQFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATA5745C-PXPW Datasheet |
| Internal Part Number | 898-ATA5745C-PXPW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Other | Multiple Changes 17/Sep/2014 Multiple Changes Revision A 04/Dec/2014 Multiple Changes Revision B 23/Feb/2015 Multiple Changes Revision C 04/Mar/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Receivers | |
| Manufacturer | Atmel | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Frequency | 433MHz | |
| Sensitivity | -113dBm | |
| Data Rate (Max) | 20 kbps | |
| Modulation or Protocol | UHF, ASK, FSK | |
| Applications | RKE, Telemetering, Security Technology | |
| Current - Receiving | 6.9mA | |
| Data Interface | PCB, Surface Mount | |
| Memory Size | - | |
| Antenna Connector | PCB, Surface Mount | |
| Features | - | |
| Voltage - Supply | 2.7 V ~ 3.3 V, 4.5 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 105°C | |

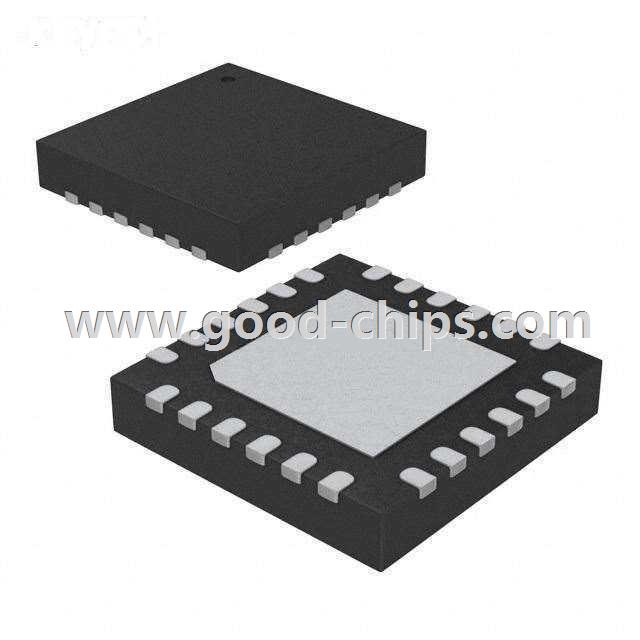

| Package / Case | 24-VQFN Exposed Pad | |
| Supplier Device Package | 24-VQFN (5x5) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATA5745C-PXPW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATA5745C-PXPW is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATA5745C-PXPW is new and unused, you can buy ATA5745C-PXPW Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA5745C-PXPW.
