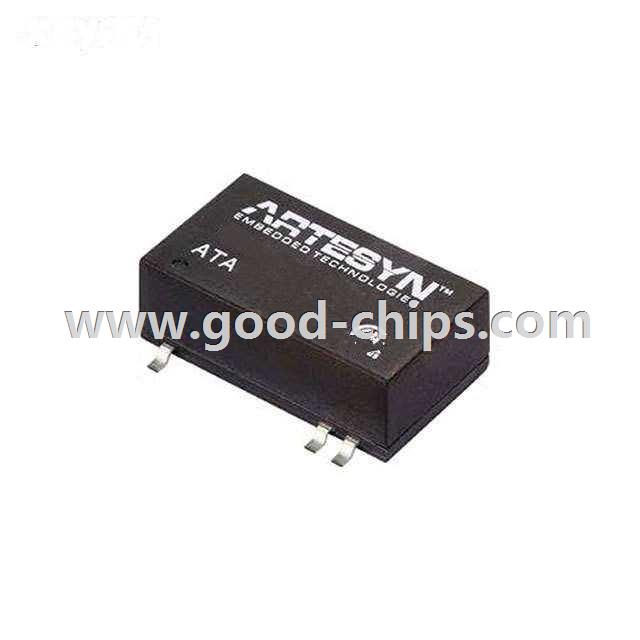

Manufacturer Part Number: | ATA00H18S-L |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9129 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 3W 24V 0.125A SMT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATA00H18S-L Datasheet |
Internal Part Number | 898-ATA00H18S-L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | ATA 3 Watt Series DC-DC Converters | |
Online Catalog | ATA Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | ATA | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 9V | |
Voltage - Input (Max) | 36V | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 125mA | |
Power (Watts) - Manufacture Series | 3W | |
Voltage - Isolation | 1.5kV (1500V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, SCP | |
Mounting Type | Surface Mount | |
Package / Case | 16-SMD Module (7 Leads) | |
Size / Dimension | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 80% | |
Power (Watts) - Max | 3W | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATA00H18S-L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATA00H18S-L is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of ATA00H18S-L is new and unused, you can buy ATA00H18S-L Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATA00H18S-L.
