| Manufacturer Part Number: | AT91RM9200-CJ-002 |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 23603 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM9® AT91 Microcontroller IC 16/32-Bit 180MHz 128KB (128K x 8) ROM 256-BGA (15x15) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AT91RM9200-CJ-002 Datasheet |
| Internal Part Number | 898-AT91RM9200-CJ-002 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SAM9 MPU Boot Solutions & Application Deployment MCU Product Line Introduction Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
| Video File | Introducing Atmel Studio 7 Atmel START Overview Atmel: picoPower Labs - The Parrot | |
| Design Resources | Development Tool Selector | |
| PCN Assembly/Origin | Wafer Fab Site Transfer 16/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | AT91 Legacy | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | AT91 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | ARM9® | |
| Core Size | 16/32-Bit | |
| Speed | 180MHz | |
| Connectivity | EBI/EMI, Ethernet, I²C, Memory Card, SPI, SSC, UART/USART, USB | |
| Peripherals | POR | |
| Number of I/O | 122 | |
| Program Memory Size | 128KB (128K x 8) | |
| Program Memory Type | ROM | |
| EEPROM Size | - | |
| RAM Size | 48K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.65 V ~ 1.95 V | |
| Data Converters | - | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

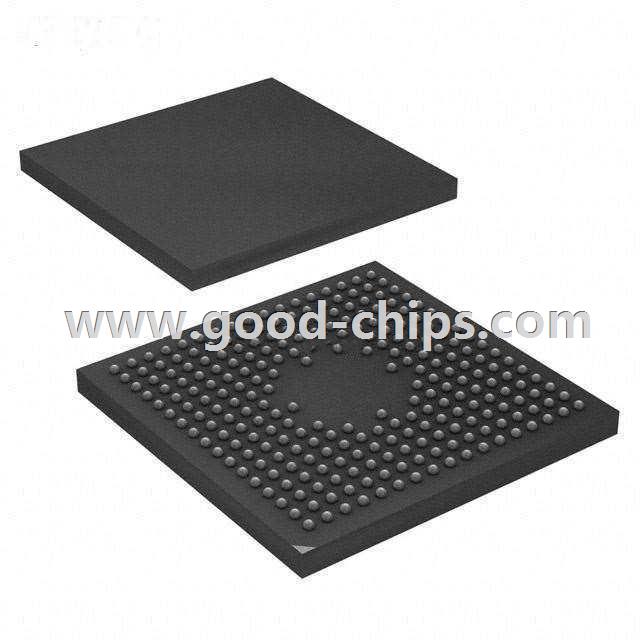

| Package / Case | 256-LFBGA | |
| Supplier Device Package | 256-BGA (15x15) | |
| Standard Package | 126 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AT91RM9200-CJ-002 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AT91RM9200-CJ-002 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of AT91RM9200-CJ-002 is new and unused, you can buy AT91RM9200-CJ-002 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT91RM9200-CJ-002.
