Manufacturer Part Number: | AT89C5115-TISUM |
---|---|
Manufacturer: | Atmel |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 11344 Pieces |
Unit Price: | Quote by Email |
Description: | 80C51 89C Microcontroller IC 8-Bit 40MHz 16KB (16K x 8) FLASH 28-SOIC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AT89C5115-TISUM Datasheet |
Internal Part Number | 898-AT89C5115-TISUM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MCU Product Line Introduction Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - The Parrot | |
Design Resources | Development Tool Selector | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 89C/89S/89LS | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | Atmel | |
Series | 89C | |
Packaging | Tube | |
Part Status | Active | |
Core Processor | 80C51 | |
Core Size | 8-Bit | |
Speed | 40MHz | |
Connectivity | UART/USART | |
Peripherals | POR, PWM, WDT | |
Number of I/O | 20 | |
Program Memory Size | 16KB (16K x 8) | |
Program Memory Type | FLASH | |
EEPROM Size | 2K x 8 | |
RAM Size | 512 x 8 | |
Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V | |
Data Converters | A/D 8x10b | |
Oscillator Type | External | |
Operating Temperature | -40°C ~ 85°C (TA) | |

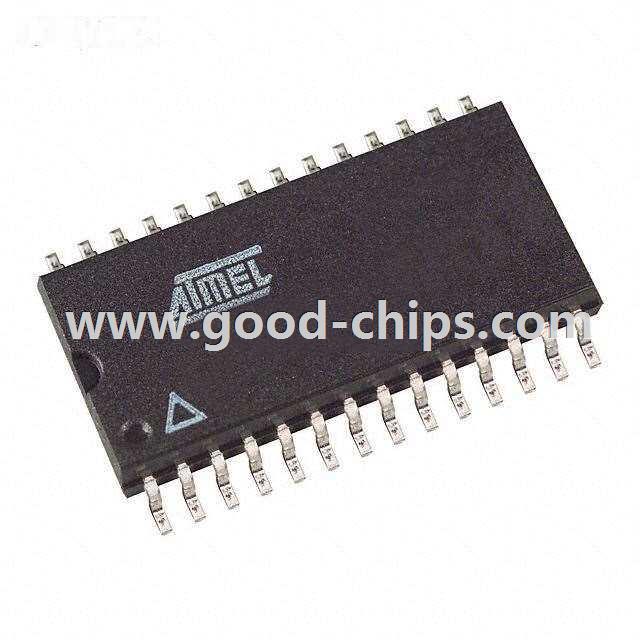

Package / Case | 28-SOIC (0.400", 10.16mm Width) | |
Supplier Device Package | 28-SOIC | |
Standard Package | 972 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AT89C5115-TISUM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AT89C5115-TISUM is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of AT89C5115-TISUM is new and unused, you can buy AT89C5115-TISUM Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT89C5115-TISUM.
