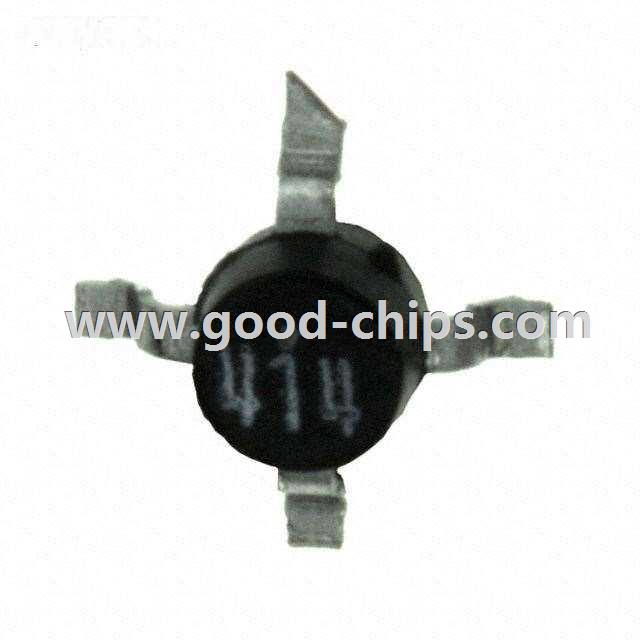

Manufacturer Part Number: | AT-41486-BLKG |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor NPN 12V 60mA 8GHz 500mW Surface Mount 86 Plastic |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AT-41486-BLKG Datasheet |
Internal Part Number | 898-AT-41486-BLKG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 18/Mar/2013 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Transistor Type | NPN | |
Voltage - Collector Emitter Breakdown (Max) | 12V | |
Frequency - Transition | 8GHz | |
Noise Figure (dB Typ @ f) | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | |
Gain | 9dB ~ 18dB | |
Power - Max | 500mW | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 8V | |
Current - Collector (Ic) (Max) | 60mA | |
Mounting Type | Surface Mount | |
Package / Case | SOT-86 | |
Supplier Device Package | 86 Plastic | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AT-41486-BLKG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AT-41486-BLKG is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AT-41486-BLKG is new and unused, you can buy AT-41486-BLKG Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT-41486-BLKG.
