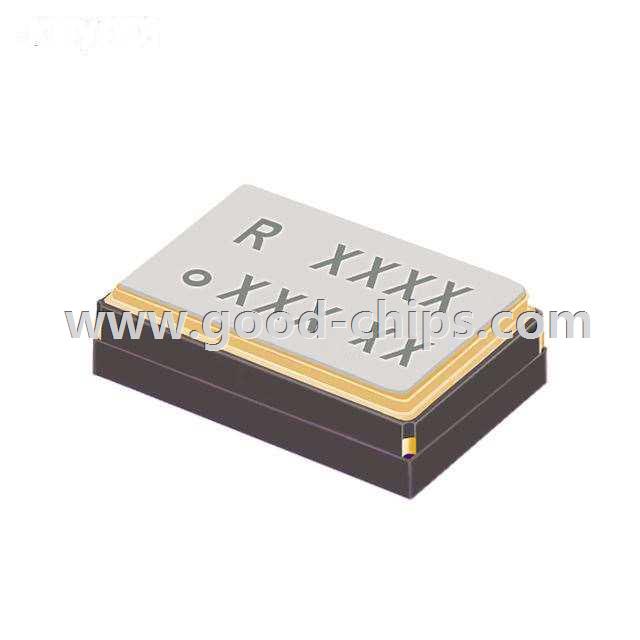

Manufacturer Part Number: | ASTXR-12-26.000MHZ-511911 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Oscillators |
Available Quantity: | 9938 Pieces |
Unit Price: | Quote by Email |
Description: | 26MHz Clipped Sine Wave TCXO Oscillator Surface Mount 1.75 V ~ 2 V 1.5mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASTXR-12-26.000MHZ-511911 Datasheet |
Internal Part Number | 898-ASTXR-12-26.000MHZ-511911 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ASTXR Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Abracon LLC | |
Series | ASTXR | |
Packaging | Cut Strip | |
Part Status | Active | |
Type | TCXO | |
Frequency | 26MHz | |
Function | Enable/Disable | |
Output | Clipped Sine Wave | |
Voltage - Supply | 1.75 V ~ 2 V | |
Frequency Stability | ±500ppb | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 1.5mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.035" (0.90mm) | |
Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 1µA | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASTXR-12-26.000MHZ-511911 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASTXR-12-26.000MHZ-511911 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASTXR-12-26.000MHZ-511911 is new and unused, you can buy ASTXR-12-26.000MHZ-511911 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASTXR-12-26.000MHZ-511911.
