Manufacturer Part Number: | ASTX-H12-12.000MHZ-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12MHz HCMOS TCXO Oscillator Surface Mount 3.3V 4.8mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASTX-H12-12.000MHZ-T Datasheet |
Internal Part Number | 898-ASTX-H12-12.000MHZ-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ASTX-H12.pdf ASTX-H12.stp | |
Online Catalog | ASTX-H12 Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Abracon LLC | |
Series | ASTX-H12 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | TCXO | |
Frequency | 12MHz | |
Function | Enable/Disable | |
Output | HCMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±2.5ppm | |
Operating Temperature | -30°C ~ 75°C | |
Current - Supply (Max) | 4.8mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.037" (0.95mm) | |

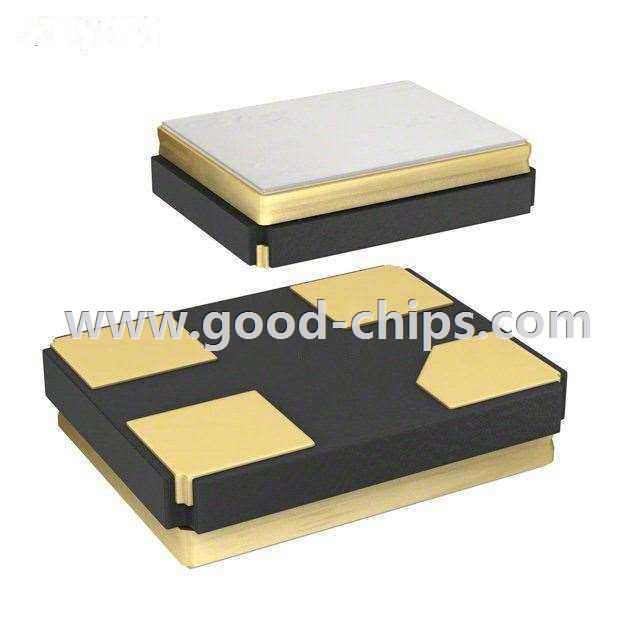

Package / Case | 4-SMD | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASTX-H12-12.000MHZ-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASTX-H12-12.000MHZ-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASTX-H12-12.000MHZ-T is new and unused, you can buy ASTX-H12-12.000MHZ-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASTX-H12-12.000MHZ-T.
