Manufacturer Part Number: | ASSR-402C-302E |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Solid State Relays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

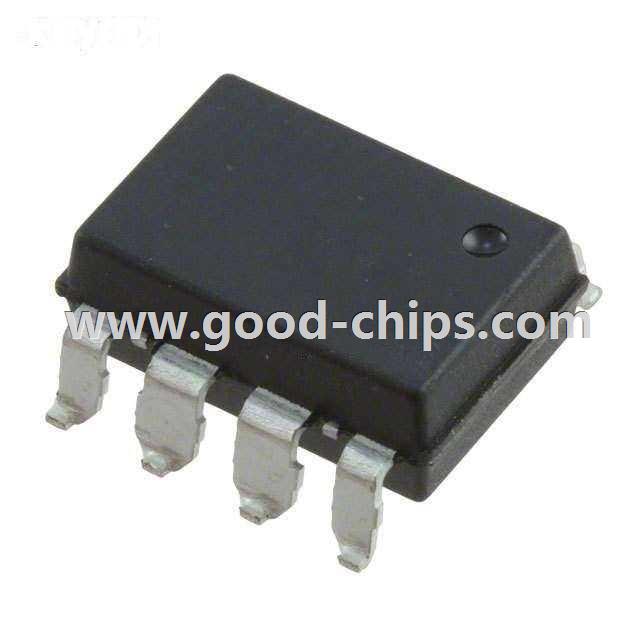

Description: | Solid State Relay DPST (2 Form A) 8-SMD (0.300", 7.62mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASSR-402C-302E Datasheet |
Internal Part Number | 898-ASSR-402C-302E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Broadcom Limited | |
Series | ASSR | |
Packaging | Tube | |
Part Status | Active | |
Circuit | DPST (2 Form A) | |
Output Type | AC, DC | |
On-State Resistance (Max) | 100 Ohm | |
Load Current | 40mA | |
Voltage - Input | 1.3VDC | |
Voltage - Load | 0 ~ 400 V | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Package / Case | 8-SMD (0.300", 7.62mm) | |
Supplier Device Package | 8-DIP Gull Wing | |
Relay Type | Relay | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASSR-402C-302E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASSR-402C-302E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASSR-402C-302E is new and unused, you can buy ASSR-402C-302E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASSR-402C-302E.
