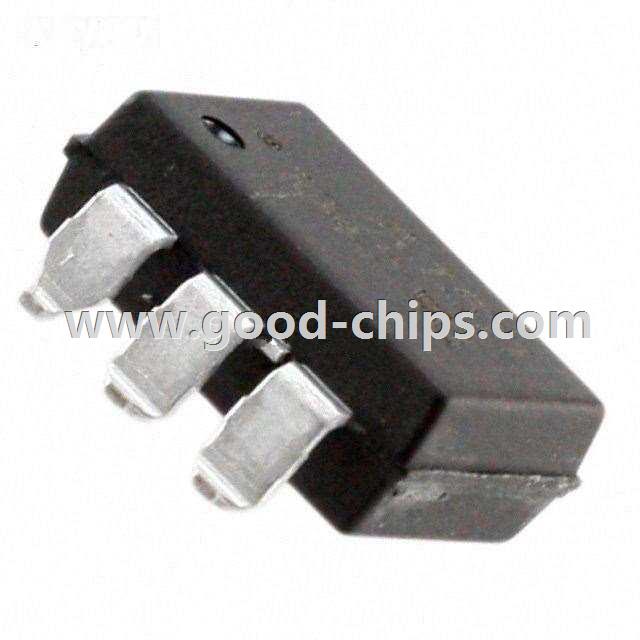

| Manufacturer Part Number: | ASSR-1511-501E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Solid State Relays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Solid State Relay SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASSR-1511-501E Datasheet |
| Internal Part Number | 898-ASSR-1511-501E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Broadcom Limited | |
| Series | ASSR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, DC | |
| On-State Resistance (Max) | 500 mOhm | |
| Load Current | 1A | |
| Voltage - Input | 1.3VDC | |
| Voltage - Load | 0 ~ 60 V | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Package / Case | 6-SMD (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP Gull Wing | |
| Relay Type | Relay | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASSR-1511-501E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASSR-1511-501E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASSR-1511-501E is new and unused, you can buy ASSR-1511-501E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASSR-1511-501E.
