Manufacturer Part Number: | ASPI-6045S-7R5M-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 10510 Pieces |
Unit Price: | Quote by Email |

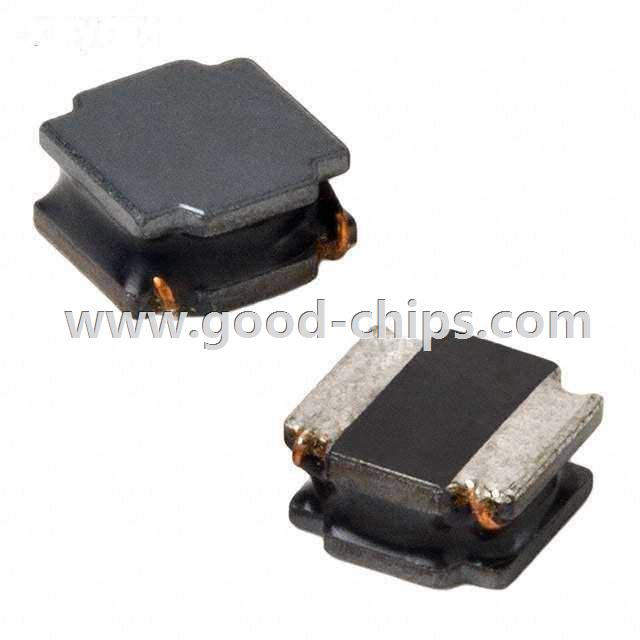

Description: | 7.5µH Shielded Wirewound Inductor 2.9A 34 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASPI-6045S-7R5M-T Datasheet |
Internal Part Number | 898-ASPI-6045S-7R5M-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ASPI-6045S.pdf ASPI-6045S.stp | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | ASPI-6045S | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 7.5µH | |
Tolerance | ±20% | |
Current Rating | 2.9A | |
Current - Saturation | 3.5A | |
Shielding | Shielded | |
DC Resistance (DCR) | 34 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | 18MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | |
Height - Seated (Max) | 0.177" (4.50mm) | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASPI-6045S-7R5M-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASPI-6045S-7R5M-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASPI-6045S-7R5M-T is new and unused, you can buy ASPI-6045S-7R5M-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASPI-6045S-7R5M-T.
