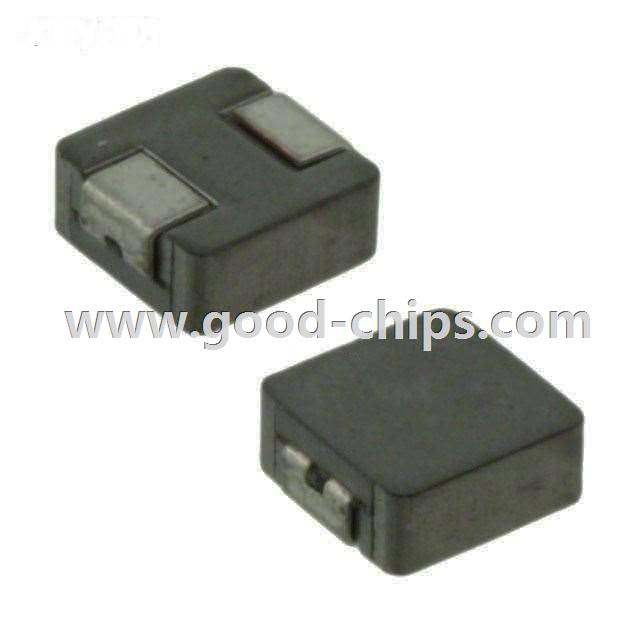

| Manufacturer Part Number: | ASPI-0630LR-R82M-T15 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 820nH Unshielded Molded Inductor 14A 7.5 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASPI-0630LR-R82M-T15 Datasheet |
| Internal Part Number | 898-ASPI-0630LR-R82M-T15 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASPI-0630LR.pdf ASPI-0630LR.stp | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | ASPI-0630LR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | Carbonyl Powder | |
| Inductance | 820nH | |
| Tolerance | ±20% | |
| Current Rating | 14A | |
| Current - Saturation | 16A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 7.5 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | - | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.283" L x 0.262" W (7.20mm x 6.65mm) | |
| Height - Seated (Max) | 0.118" (3.00mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASPI-0630LR-R82M-T15 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASPI-0630LR-R82M-T15 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASPI-0630LR-R82M-T15 is new and unused, you can buy ASPI-0630LR-R82M-T15 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASPI-0630LR-R82M-T15.
