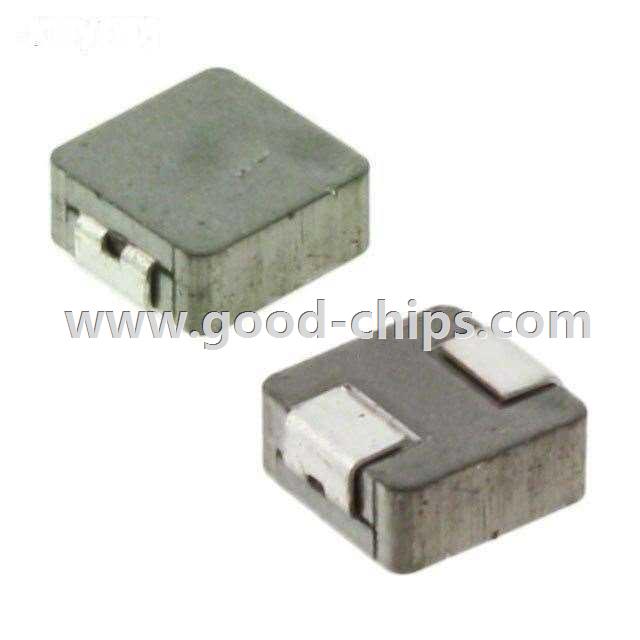

Manufacturer Part Number: | ASPI-0630HI-1R0M-T15 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 11488 Pieces |
Unit Price: | Quote by Email |
Description: | 1µH Unshielded Molded Inductor 11A 10 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASPI-0630HI-1R0M-T15 Datasheet |
Internal Part Number | 898-ASPI-0630HI-1R0M-T15 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ASPI-0630HI.pdf ASPI-0630HI.stp | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | ASPI-0630HI | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | Molded | |
Material - Core | Carbonyl Powder | |
Inductance | 1µH | |
Tolerance | ±20% | |
Current Rating | 11A | |
Current - Saturation | 20.5A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 10 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | - | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.283" L x 0.262" W (7.20mm x 6.65mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASPI-0630HI-1R0M-T15 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASPI-0630HI-1R0M-T15 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASPI-0630HI-1R0M-T15 is new and unused, you can buy ASPI-0630HI-1R0M-T15 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASPI-0630HI-1R0M-T15.
