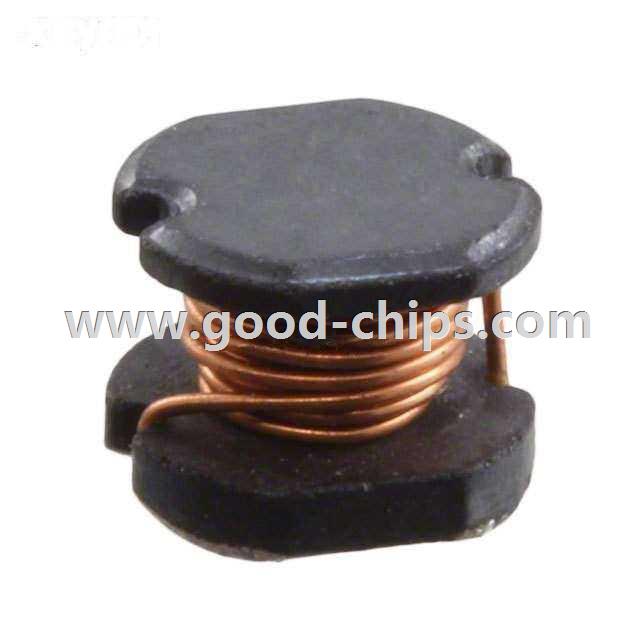

| Manufacturer Part Number: | ASPI-0504-820K-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 82µH Unshielded Wirewound Inductor 580mA 600 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASPI-0504-820K-T Datasheet |
| Internal Part Number | 898-ASPI-0504-820K-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASPI-0504.pdf ASPI-0504.stp | |
| Online Catalog | ASPI Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | ASPI-0504 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 82µH | |
| Tolerance | ±10% | |
| Current Rating | 580mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 600 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 2.52MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) | |
| Height - Seated (Max) | 0.177" (4.50mm) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASPI-0504-820K-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASPI-0504-820K-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASPI-0504-820K-T is new and unused, you can buy ASPI-0504-820K-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASPI-0504-820K-T.
