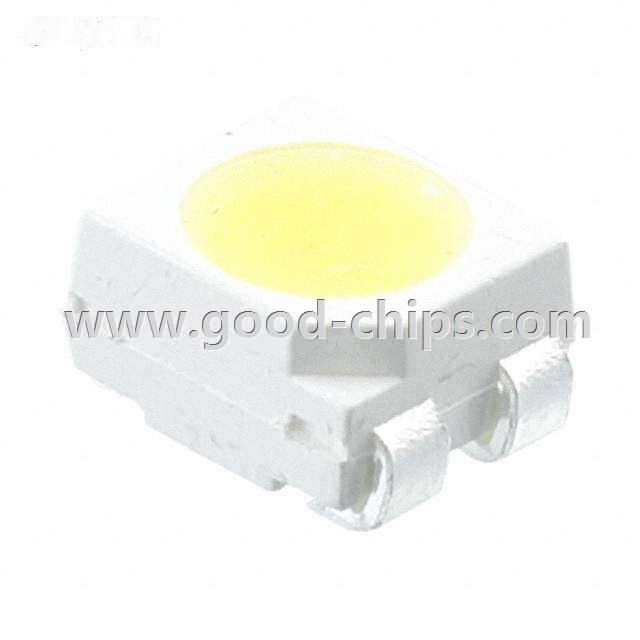

| Manufacturer Part Number: | ASMT-QWBF-NKL0E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Lighting - White |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting - White, Cool 7250K (4500K ~ 10000K) 3.3V 150mA 120° 4-PLCC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASMT-QWBF-NKL0E Datasheet |
| Internal Part Number | 898-ASMT-QWBF-NKL0E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Assembly/Origin | PLCC LED Alternate Assembly Site 30/Jul/2014 | |
| Online Catalog | ASMT-QxBx-Nxxxx | |
| Category | Optoelectronics | |
| Family | LED Lighting - White | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Cool | |
| CCT (K) | 7250K (4500K ~ 10000K) | |
| Flux @ 85°C, Current - Test | 42 lm | |
| Flux @ 25°C, Current - Test | 49 lm | |
| Current - Test | 150mA | |
| Voltage - Forward (Vf) (Typ) | 3.3V | |
| Lumens/Watt @ Current - Test | 94 lm/W | |
| CRI (Color Rendering Index) | - | |
| Current - Max | 150mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-PLCC | |
| Thermal Resistance of Package | 50°C/W | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASMT-QWBF-NKL0E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASMT-QWBF-NKL0E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-QWBF-NKL0E is new and unused, you can buy ASMT-QWBF-NKL0E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-QWBF-NKL0E.
