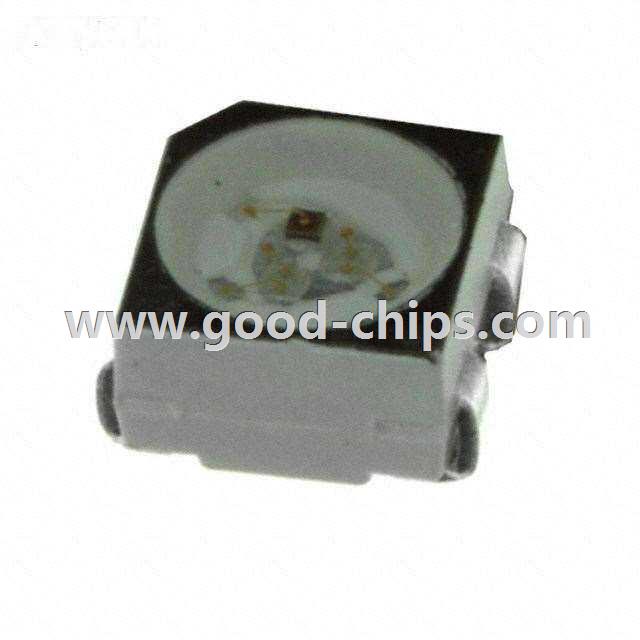

| Manufacturer Part Number: | ASMT-QTB0-0AA02 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red, Green, Blue (RGB) 621nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.2V Blue 4-SMD, J-Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASMT-QTB0-0AA02 Datasheet |
| Internal Part Number | 898-ASMT-QTB0-0AA02 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 01/Jul/2011 | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | Red, Green, Blue (RGB) | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 620mcd Red, 1200mcd Green, 280mcd Blue | |
| Lens Style/Size | Round with Flat Top, 2.90mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue | |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue | |
| Wavelength - Peak | 629nm Red, 521nm Green, 465nm Blue | |
| Features | - | |
| Package / Case | 4-SMD, J-Lead | |
| Supplier Device Package | 4-PLCC | |
| Size / Dimension | 3.40mm L x 3.20mm W | |
| Height (Max) | 2.20mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASMT-QTB0-0AA02 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASMT-QTB0-0AA02 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-QTB0-0AA02 is new and unused, you can buy ASMT-QTB0-0AA02 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-QTB0-0AA02.
