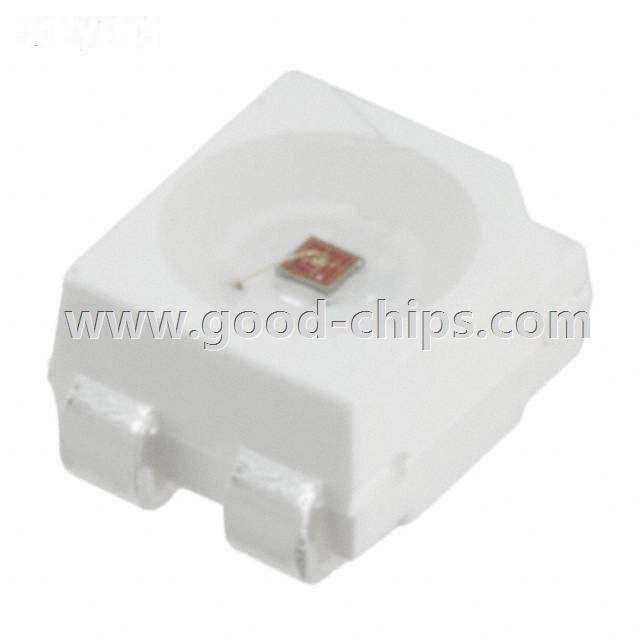

| Manufacturer Part Number: | ASMT-QHBD-AFH0E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color - Red 618nm (611nm ~ 625nm) 4-PLCC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASMT-QHBD-AFH0E Datasheet |
| Internal Part Number | 898-ASMT-QHBD-AFH0E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Assembly/Origin | PLCC LED Alternate Assembly Site 30/Jul/2014 | |
| Online Catalog | ASMT-QxBx-Nxxxx and ASMT-QxBD-Axxxx | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red | |
| Wavelength | 618nm (611nm ~ 625nm) | |
| Current - Test | 150mA | |
| Voltage - Forward (Vf) (Typ) | 2.5V | |
| Lumens/Watt @ Current - Test | 64 lm/W | |
| Current - Max | 300mA | |
| Flux @ Current/Temperature - Test | 24 lm (15 lm ~ 33 lm) | |
| Temperature - Test | 25°C | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-PLCC | |
| Thermal Resistance of Package | 60°C/W | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASMT-QHBD-AFH0E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASMT-QHBD-AFH0E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-QHBD-AFH0E is new and unused, you can buy ASMT-QHBD-AFH0E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-QHBD-AFH0E.
