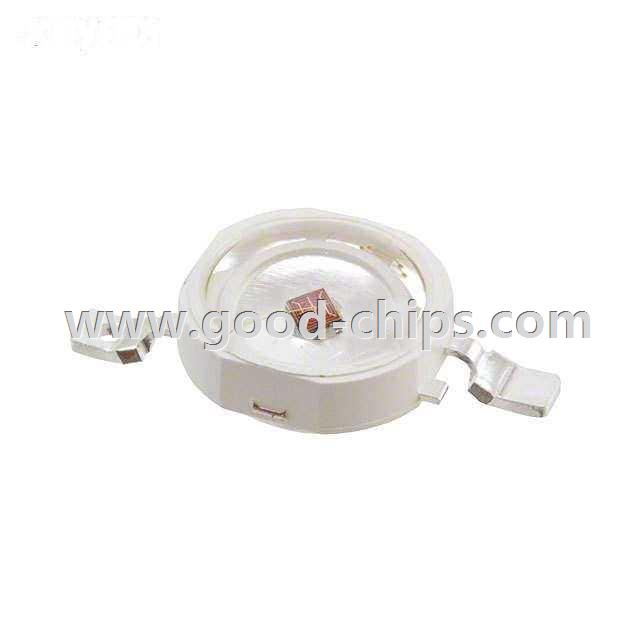

| Manufacturer Part Number: | ASMT-AR00-ARS00 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 11608 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color - Red 628nm (620nm ~ 635nm) 2-SMD, Gull Wing, Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASMT-AR00-ARS00 Datasheet |
| Internal Part Number | 898-ASMT-AR00-ARS00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Design/Specification | ASMT, QSMT Series Dimension 16/Apr/2012 | |
| Online Catalog | ASMT-Ax00 LEDs | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Color | Red | |
| Wavelength | 628nm (620nm ~ 635nm) | |
| Current - Test | 350mA | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Lumens/Watt @ Current - Test | 73 lm/W | |
| Current - Max | 500mA | |
| Flux @ Current/Temperature - Test | 54 lm (40 lm ~ 62 lm) | |
| Temperature - Test | 25°C | |
| Viewing Angle | 140° | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, Gull Wing, Exposed Pad | |
| Thermal Resistance of Package | 10°C/W | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASMT-AR00-ARS00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASMT-AR00-ARS00 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-AR00-ARS00 is new and unused, you can buy ASMT-AR00-ARS00 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-AR00-ARS00.
