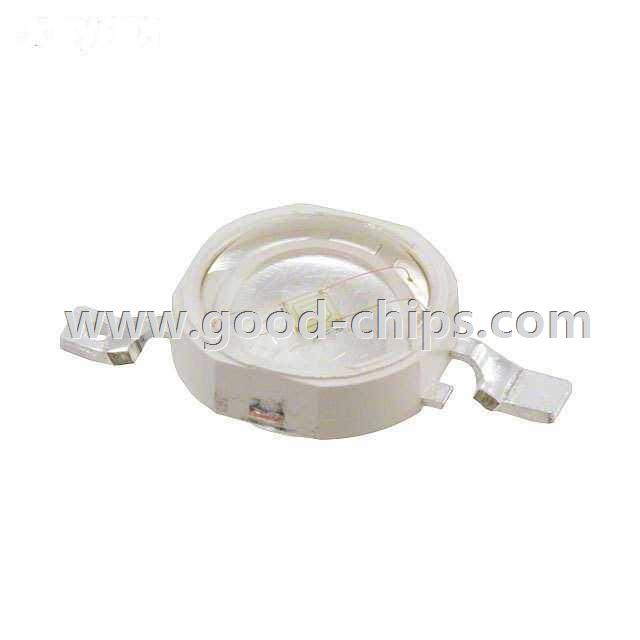

Manufacturer Part Number: | ASMT-AG00-NST00 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | LED Lighting - Color |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting Color - Green 525nm (515nm ~ 535nm) 2-SMD, Gull Wing, Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASMT-AG00-NST00 Datasheet |
Internal Part Number | 898-ASMT-AG00-NST00 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
PCN Obsolescence/ EOL | Multiple Devices 11/Jul/2014 | |
PCN Design/Specification | ASMT, QSMT Series Dimension 16/Apr/2012 | |
Category | Optoelectronics | |
Family | LED Lighting - Color | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Color | Green | |
Wavelength | 525nm (515nm ~ 535nm) | |
Current - Test | 350mA | |
Voltage - Forward (Vf) (Typ) | 3.2V | |
Lumens/Watt @ Current - Test | 63 lm/W | |
Current - Max | 500mA | |
Flux @ Current/Temperature - Test | 70 lm (52 lm ~ 87 lm) | |
Temperature - Test | 25°C | |
Viewing Angle | 140° | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD, Gull Wing, Exposed Pad | |
Thermal Resistance of Package | 10°C/W | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASMT-AG00-NST00 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASMT-AG00-NST00 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-AG00-NST00 is new and unused, you can buy ASMT-AG00-NST00 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-AG00-NST00.
