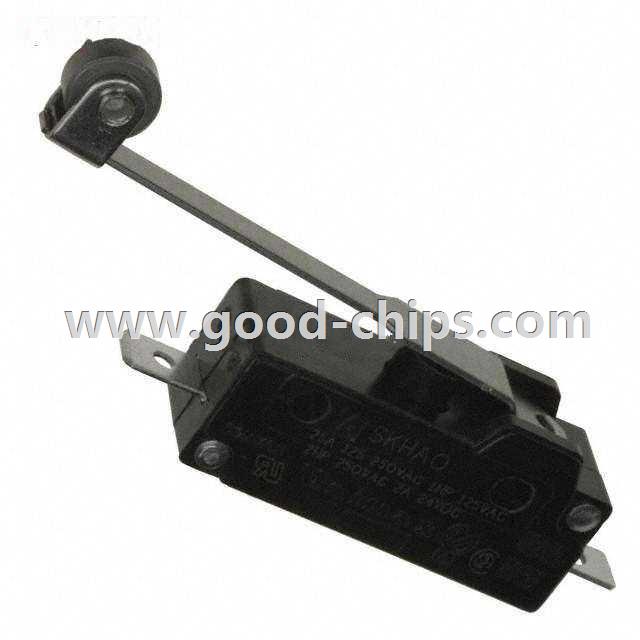

| Manufacturer Part Number: | ASKHF3A04AY |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9206 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPST-NO 25A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASKHF3A04AY Datasheet |
| Internal Part Number | 898-ASKHF3A04AY | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches Building Automation Applications | |
| Featured Product | Industrial Switches – C&K Components | DigiKey | |
| Online Catalog | A Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 25A (AC), 2A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 24V | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 113gf | |
| Release Force | 14gf | |
| Pretravel | 0.312" (7.9mm) | |
| Differential Travel | - | |
| Overtravel | 0.312" (7.9mm) | |
| Operating Position | 0.718" (18.24mm) | |
| Mechanical Life | - | |
| Electrical Life | 75,000 Cycles | |
| Operating Temperature | -55°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASKHF3A04AY | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASKHF3A04AY is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ASKHF3A04AY is new and unused, you can buy ASKHF3A04AY C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASKHF3A04AY.
