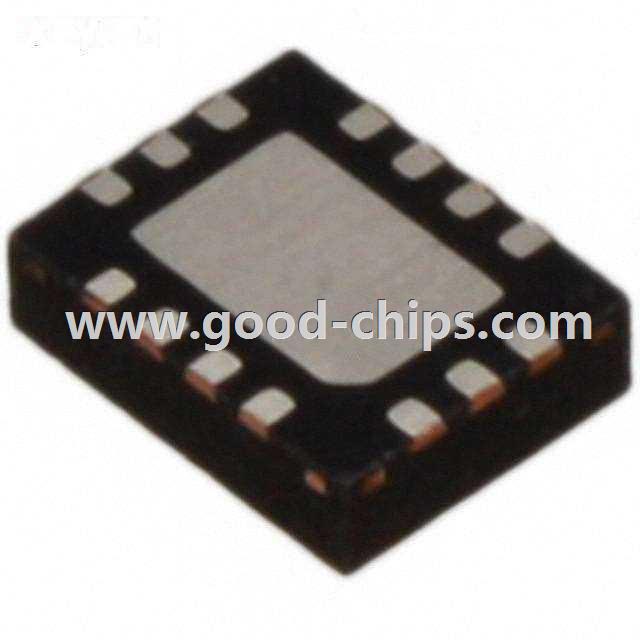

| Manufacturer Part Number: | ASEMDLC-LR |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Pin Configurable Oscillators |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | 74.25MHz, 100MHz, 125MHz, 148.5MHz, 150MHz, 156.25MHz CMOS, LVDS MEMS (Silicon) Pin Configurable Oscillator 14-VFQFN Exposed Pad 2.25 V ~ 3.6 V 49mA (Typ) Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASEMDLC-LR Datasheet |
| Internal Part Number | 898-ASEMDLC-LR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASEMDLC.pdf ASEMDLC.stp | |
| Online Catalog | ASEMDLC, Pure Silicon™ Series | |
| Category | Crystals and Oscillators | |
| Family | Pin Configurable Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | Pure Silicon™ ASEMDLC | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | MEMS (Silicon) | |
| Frequency - Output 1 | 74.25MHz, 100MHz, 125MHz, 148.5MHz, 150MHz, 156.25MHz | |
| Frequency - Output 2 | 25MHz, 50MHz, 74.25MHz, 75MHz, 125MHz | |
| Function | Enable/Disable | |
| Output | CMOS, LVDS | |
| Voltage - Supply | 2.25 V ~ 3.6 V | |
| Frequency Stability | ±25ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Max) | 49mA (Typ) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height | 0.035" (0.90mm) | |
| Package / Case | 14-VFQFN Exposed Pad | |
| Current - Supply (Disable) (Max) | 23mA | |
| Standard Package | 110 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASEMDLC-LR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASEMDLC-LR is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASEMDLC-LR is new and unused, you can buy ASEMDLC-LR Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASEMDLC-LR.
